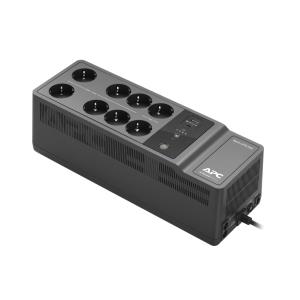

Back-UPS 850VA 230V USB Type-C And A Charging Ports

Introduction

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable
Provides temporary battery power when the utility power is out.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.

USB charging ports
Simultaneously charge mobile devices, including smartphones and tablets.

USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Features

UPS topology

Standby (Offline)

Output power capacity

0.85 kVA

Output power

520 W

Waveform

Sine

Input operation voltage (min)

220 V

Input operation voltage (max)

230 V

Input frequency

47/63 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

230 V

Output frequency

47/63 Hz

Maximum current

6 A

Surge energy rating

310 J

Efficiency

80%

Noise level

45 dB

Surge protection

Y

Surge protection features

Digital Subscriber Line (DSL)

Audible alarm(s)

Y

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

Ports & interfaces

USB port

Y

USB port type

USB Type-C

Ethernet LAN (RJ-45) ports

1

Cabling technology

10/100Base-T

Battery

Battery life (max)

5 year(s)

Battery recharge time

16 h

Hot-swap battery

Y

Automatic battery test

Y

Cold start

Y

Design

Form factor

Compact

Cable length

1.83 m

Product colour

Black

LED indicators

Y

Certification

CE, EAC

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

0 - 4500 m

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

130 mm

Depth

365 mm

Height

120 mm

Weight

4.5 kg

Package width

186 mm

Package depth

441 mm

Package height

190 mm

Package weight

5 kg

Packaging data

Manual

Y

Logistics data

Master (outer) case gross weight

16 kg
