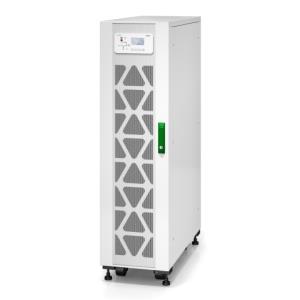

Easy UPS 3S 15 kVA 400 V 3:1 UPS With Internal Batteries - 25 Minutes Runtime

Introduction

Easy UPS 3S 15 kVA 400 V 3:1 UPS with internal batteries - 25 minutes runtime

High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.

Features

UPS topology

Double-conversion (Online)

Output power capacity

15 kVA

Output power

15000 W

Input operation voltage (min)

304 V

Input operation voltage (max)

477 V

Input frequency

45/65 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Output voltage regulation

3%

Input power factor

0.99

Crest factor

3:1

ECO mode

Y

Output voltage Total Harmonic Distortion (THD)

5.5%

Noise level

60 dB

Power protection features

Overload

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

240 V

Number of batteries supported

2

Design

Form factor

Large tower

Product colour

White

International Protection (IP) code

IP20

Certification

CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 984 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

380 mm

Depth

907 mm

Height

1400 mm

Weight

211 kg

Package width

563 mm

Package depth

1014 mm

Package height

1640 mm

Package weight

229 kg
