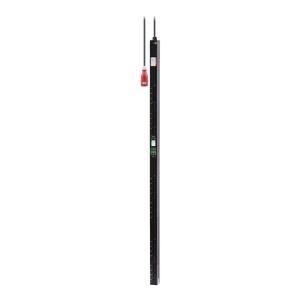

Easy Rack PDU, Switched Metered Outlet, 0U, 3 Phase, 11kW, 230V, 16A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet

Introduction

Easy rack PDU Metered-by-Outlet with Switching EPDU2216SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2216SMBO is designed for three phase applications of upto 11kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.

Design

PDU types

Metered, Switched

Type

Three-phase

Rack capacity

0U

Mounting

Vertical

Housing material

Metal

Product colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C13 coupler, C19 coupler

Ethernet LAN (RJ-45) ports

1

USB ports quantity

1

Features

Cable length

3 m

Power

Nominal input voltage

400 V

AC input frequency

50/60 Hz

Maximum current

16 A

Output voltage

200-240 V

Load capacity

11000 VA

Maximum power

11000 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

55 mm

Depth

56 mm

Height

1800 mm

Weight

7.12 kg

Packaging data

Package weight

8.29 kg

Package width

195 mm

Package depth

130 mm

Package height

2030 mm
