Product Details
Introduction

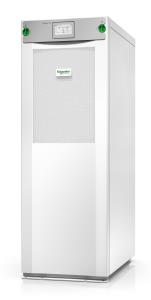

Highly efficient, easy-to-deploy 80kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode - reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
Features
UPS topology
Double-conversion (Online)
Output power capacity
80 kVA
Output power
80000 W
Waveform
Sine
Input operation voltage (min)
340 V
Input operation voltage (max)
460 V
Input frequency
40/70 Hz
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Output frequency
50/60 Hz
Maximum current
148 A
Number of input phases
3
Number of output phases
3
Efficiency
97%
Input power factor
0.99
Crest factor
2.5:1
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
65 dB
Design
Form factor
Tower
Product colour
White
LED indicators
Y
Certification
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
10 - 80%
Operating altitude
0 - 984.3 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
521 mm
Depth
847 mm
Height
1485 mm
Weight
250 kg
Package width
640 mm
Package depth
990 mm
Package height
1680 mm
Package weight
275 kg
Other features
Input connection type
3-wire (3PH + G), 5-wire (3PH + N + G)
Nominal output voltage
400 V
Nominal input voltage
400 V
