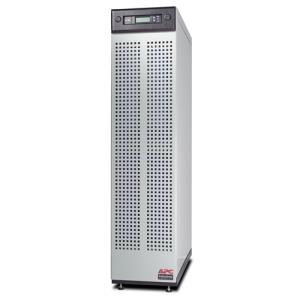

AIS 3100 20kVA 230V Output 3:1 w/2 Batt Modules, Start-Up 5X8, Internal Maintenance Bypass

AIS 3100 20kVA 230V Output 3:1 w/2 Batt Modules, Start-Up 5X8, Internal Maintenance Bypass

$15.840,78
Part Number: ISVT20K3I2B2S


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Battery modules connected in parallel
Delivers higher availability through redundant batteries.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Serviceability
Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.

Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.

Battery replacement without tools
Allows quick, easy battery replacement.

User-replaceable air filters
Enables quick and simple replacement of air filters.

Features

Output power capacity

20 kVA

Output power

16000 W

Input frequency

40/70 Hz

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Battery

Battery recharge time

5 h

Hot-swap battery

Yes

Design

Product colour

Grey

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-50 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 999.9 m

Non-operating altitude

0 - 15000 m

Certificates

Certification

CE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111

Weight & dimensions

Weight

402 kg

Packaging data

Package weight

428.2 kg

Other features

Battery type

VRLA

Output connections

1x Hard Wire 3-wire (H N + G) 1x Screw Terminals

Input connection type

Hard Wire 5-wire (3PH + N + G)

Dimensions (WxDxH)

352 x 854 x 1500 mm

Nominal output voltage

230 V

Output voltage note

Configurable for 220: 230 or 240 nominal output voltage

Nominal input voltage

400 V

Package dimensions (WxDxH)

650 x 1062 x 1643 mm
