Product Details
Introduction

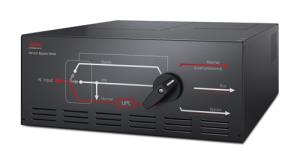

Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
Features
Output power capacity
20 kVA
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Input frequency
50/60 Hz
Maximum current
125 A
Design
Form factor
Tower
Product colour
Black
Certification
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 4500 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
432 mm
Depth
554 mm
Height
178 mm
Weight
19.3 kg
Package weight
31.4 kg
Other features
Operating temperature (T-T)
-4 - 122 °F
Overload protection
Y
Package dimensions (WxDxH)
610 x 845 x 305 mm
