Introduction

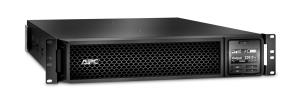

High density, double-conversion on-line power protection with scalable runtime.
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Output frequency regulation
50/60 Hz
Surge energy rating
340 J
Efficiency
93.5%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Web-based management
Y
Auto-restart
Y
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
505 VAh
Number of batteries supported
1
Typical backup time at full load
4 min
Typical backup time at half load
11.8 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Rack capacity
2U
Cable length
2.44 m
Product colour
Black
Display type
LCD
LED indicators
Y
International Protection (IP) code
IP20
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS, ENERGY STAR
Weight & dimensions
Width
432 mm
Depth
635 mm
Height
85 mm
Weight
31.3 kg
Package width
599 mm
Package depth
871 mm
Package height
246 mm
Package weight
39.9 kg
Packaging data
Rack mount kit
Y
Bracket
Y
Cables included
USB cable
Quick installation guide
Y
Warranty card
Y
Software CD
Y
Logistics data
Products per pallet
6 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
