Smart-UPS RT 10KVA 230V

Smart-UPS RT 10KVA 230V

$8.573,54
Part Number: SRTG10KXLI


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

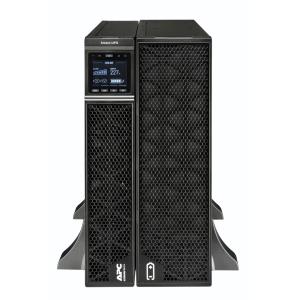

APC Smart-UPS RT 10kVA 230V

- High density, double-conversion on-line power protection with scalable runtime
- Includes: Smart UPS signalling RS-232 cable, User manual

Features

UPS topology

Double-conversion (Online)

Output power capacity

10 kVA

Output power

10000 W

Waveform

Sine

Input operation voltage (min)

100 V

Input operation voltage (max)

285 V

Input frequency

40/70 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Surge energy rating

600 J

Crest factor

3:1

ECO mode

Y

Output voltage Total Harmonic Distortion (THD)

2%

Noise level

55 dB

Audible alarm(s)

Y

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

Auto-restart

Y

Ports & interfaces

AC outlet types

C13 coupler, C19 coupler

Power plug

Hardwire

AC outlets quantity

3 AC outlet(s)

USB port

Y

Serial interface

Y

Ethernet LAN (RJ-45) ports

1

Emergency Power Off (EPO) connector

Y

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

96 V

Battery life (max)

5 year(s)

Battery recharge time

4 h

Hot-swap battery

Y

Automatic battery test

Y

Cold start

Y

Design

Form factor

Rackmount/Tower

Display type

LCD

LED indicators

Y

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 2011.68 m

Non-operating altitude

0 - 15240 m

Weight & dimensions

Width

440 mm

Depth

620 mm

Height

217 mm

Weight

81.1 kg

Package width

590 mm

Package depth

790 mm

Package height

414 mm

Package weight

83.1 kg
