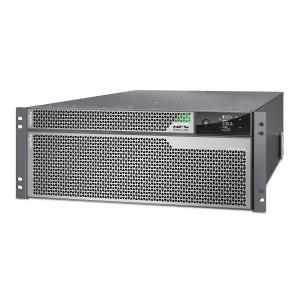

Smart-UPS Ultra On-Line Lithium ion 8KVA/8KW 4U Rack/Tower 230V

Features

UPS topology

Double-conversion (Online)

Output power capacity

8 kVA

Output power

8000 W

Waveform

Sine

Input operation voltage (min)

220 V

Input operation voltage (max)

240 V

Input frequency

40/70 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Surge energy rating

1410 J

Heat dissipation

1900 BTU/h

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Output voltage Total Harmonic Distortion (THD)

5%

Noise level

55 dB

Audible alarm(s)

Yes

Audible alarm modes

Alarm when on battery, Low battery alarm

Ports & interfaces

AC outlet types

Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire

Power plug

Hardwire

AC outlets quantity

12 AC outlet(s)

USB port

Yes

SmartSlot

Yes

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery voltage

180 V

Typical backup time at full load

7 min

Typical backup time at half load

15 min

Battery life (max)

10 year(s)

Battery recharge time

1.5 h

Design

Form factor

Rackmount/Tower

Rack capacity

4U

Product colour

Grey

Display type

LCD

LED indicators

Yes

International Protection (IP) code

IP20

Certification

EN/IEC 62040-1 IEC 62040-2

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15240 m

Technical details

Sustainability compliance

Yes

Sustainability certificates

CE, REACH, RoHS, UKCA, VDE

Weight & dimensions

Width

432 mm

Depth

832 mm

Height

175 mm

Weight

55 kg

Package width

650 mm

Package depth

1000 mm

Package height

630 mm

Package weight

88.5 kg

Packaging data

Cables included

USB cable
