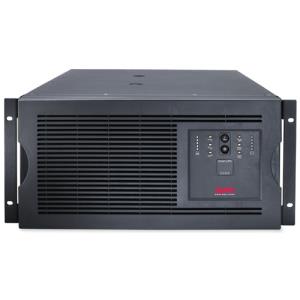

Smart UPS 5000va 230v Rackmount/ Tower

Introduction

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U

Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card

Standard Lead Time: Usually Ships within 4 Weeks

-Adjustable voltage-transfer points.
-Audible alarms.
-Automatic self-test.
-Boost and Trim Automatic Voltage Regulation (AVR).
-Cold-start capable.
-Disconnected battery notification.
-Hot-swappable batteries.
-LED status indicators.
-Network manageable.
-Plug-and-Play installation.
-Rack/Tower convertible.
-Resettable circuit breakers.
-Safety-agency approved
-Serial Connectivity.
-SmartSlot.
-Temperature-compensated battery charging.

Features

UPS topology

Line-Interactive

Output power capacity

5 kVA

Output power

4000 W

Waveform

Sine

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Input frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency regulation

47 - 53 Hz

Automatic Voltage Regulation (AVR)

Y

Surge energy rating

480 J

Hold time (min)

2 ms

Hold time (max)

4 ms

Number of output phases

1

Efficiency

96%

Noise level

53 dB

Surge protection

Y

Audible alarm(s)

Y

Auto-restart

Y

Ports & interfaces

AC outlet types

C13 coupler, C19 coupler

Power plug

Hard Wire 3-wire

AC outlets quantity

10 AC outlet(s)

Number of output IEC jumpers

4

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

1632 VAh

Typical backup time at full load

9.4 min

Typical backup time at half load

26.7 min

Battery life (max)

5 year(s)

Battery recharge time

3 h

Hot-swap battery

Y

Automatic battery test

Y

Cold start

Y

Design

Form factor

Rackmount/Tower

Rack capacity

5U

Product colour

Black

LED indicators

Battery replacement

Certification

C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 9000 m

Non-operating altitude

0 - 15000 m

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

483 mm

Depth

660 mm

Height

222 mm

Weight

97.7 kg

Package width

610 mm

Package depth

762 mm

Package height

635 mm

Package weight

106.8 kg

Packaging data

Rack mount kit

Y

Cables included

RS-232

Manual

Y

Quick installation guide

Y

Software CD

Y

Logistics data

Products per pallet

4 pc(s)

Products per master (outer) case

1 pc(s)

Other features

Nominal output voltage

230 V

Nominal input voltage

230 V

Packaging content

Web/SNMP Management Card
