Product Details
Introduction

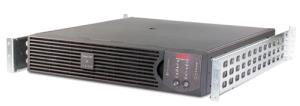

APC Smart-UPS On-Line, 700 Watts / 1000 VA, Input 230V / Output 230V , Interface Port DB-9 RS-232, SmartSlot , Extended runtime model , Rack Height 2 U
Includes: CD with software, Smart UPS signalling RS-232 cable, User Manual
Standard Lead Time: Usually in Stock
Features
Output power capacity
1 kVA
Output power
700 W
Input operation voltage (min)
100 V
Input operation voltage (max)
280 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
420 J
Efficiency
88%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Ports & interfaces
AC outlet types
C13 coupler
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2.5 m
Product colour
Black
LED indicators
Y
Certification
CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2.
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
85 mm
Depth
483 mm
Height
432 mm
Weight
23 kg
Package weight
27.8 kg
Other features
Dimensions (WxDxH)
85 x 483 x 432 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
630 x 594 x 286 mm
