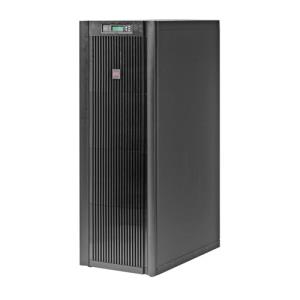

Smart-UPS VT 10kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable

Introduction

Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.

Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy

Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Scalable runtime
Allows additional run time to be quickly added as needed.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Battery modules connected in parallel
Delivers higher availability through redundant batteries.

Features

Output power capacity

10 kVA

Output power

8000 W

Efficiency

93%

Emergency Power Off (EPO)

Yes

Noise level

54 dB

Audible alarm(s)

Yes

Ports & interfaces

AC outlets quantity

1 AC outlet(s)

Serial ports quantity

1

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

5 h

Design

Form factor

Rackmount

Product colour

Black

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-50 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 999.9 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

523 mm

Depth

813 mm

Height

1499 mm

Weight

506.8 kg

Packaging data

Package weight

537.7 kg

Other features

Interface

DB-9 RS-232, SmartSlot

Nominal output voltage

120-208 V

Nominal input voltage

208 V

Package dimensions (WxDxH)

650 x 1062 x 1643 mm
