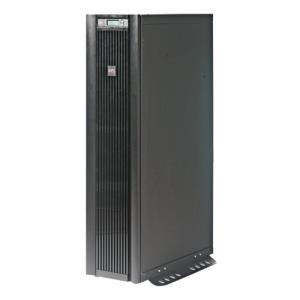

Smart-UPS VT 15kVA 208V w/2 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable

Introduction

Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Scalable runtime
Allows additional run time to be quickly added as needed.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Battery modules connected in parallel
Delivers higher availability through redundant batteries.

Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Battery replacement without tools
Allows quick, easy battery replacement.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Shippable with modules installed
Enables pre-installation UPS staging and testing and faster installation.

Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

Features

Output power capacity

15 kVA

Output power

12000 W

Input frequency

40/70 Hz

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

5 h

Hot-swap battery

Yes

Design

Product colour

Black

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-50 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 999.9 m

Non-operating altitude

0 - 15000 m

Certificates

Certification

cUL Recognized,ISO 14001,ISO 9001,UL 1778

Weight & dimensions

Weight

396.8 kg

Packaging data

Package weight

428.2 kg

Other features

Battery type

VRLA

Interface

DB-9 RS-232, Smart-Slot

Output connections

1x Hard Wire 5-wire (3PH + N + G) 1x Screw Terminals

Input connection type

Hard Wire 5-wire (3PH + N + G)

Dimensions (WxDxH)

356 x 813 x 1499 mm

Output voltage note

Configurable for 208 and 220V - 3 Phase

Nominal input voltage

208 V

Package dimensions (WxDxH)

650 x 1062 x 1643 mm
