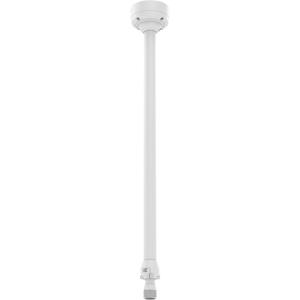

T91b50 Telescopic Ceiling Mount

Introduction

- For outdoor and indoor
- Adjustable length
- Swivel action
- Robust and safe
- Vandal and corrosion resistant: IK10- and NEMA 4X-rated

AXIS T91B50 Telescopic Ceiling Mount is compatible with all Axis PTZ dome cameras and outdoor models of Axis fixed domes.

Easy to install. Easy to adjust
AXIS T91B50 mount is easy to install and just as easy to adjust to the perfect length for your installation. Its telescopic design means the pipe component can be regulated between 1 meter (39 in) and 2 meters (79 in) right out-of-the box. In addition, if a longer pipe is needed there is a 30 cm (12 in) and a 100 cm (39 in) optional extension pipe available.

Hangs below other installations
AXIS T91B50 mount is designed especially for environments with lighting and ventilation pipes under the ceiling. It let's you ceiling-mount video cameras to hang beneath other installations. In addition, it will stay perpendicular even when mounted on a sloped ceiling. It is also appropriate for offshore and outdoor applications.

Robust and safe
AXIS T91B50 features a swivel function that allows it to swing safely out of the way if it is accidently hit by a tall vehicle. It can be secured to the ceiling with wires if you need a particularly sturdy installation. And the cable is routed inside the telescopic pipe for safety and a clean look. In addition, AXIS T91B50 is rated IK10 for vandal resistance and NEMA 4X for corrosion and salt spray resistance.

Features

Type

Mount

Placement supported

Universal

Compatibility

AXIS P55/P56/Q60/Q61 AXIS M50 AXIS P33 AXIS P32/Q35 AXIS M3004-V/M3005-V AXIS M3006-V/M3007-P/ M3007-PV AXIS M3024-LVE/M3025-VE/M3026-VE/M3027-PVE/M3037-PVE AXIS P3707-PE AXIS Q3709-PVE

Product colour

White

Housing material

Aluminium

Certification

IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 EN 50581 IEC/EN 62262 IK10 NEMA 250 Type 4X

Ergonomics

Maximum weight capacity

10 kg

Tilt angle range

-45 - 45°

Weight & dimensions

Height

2136 mm

Weight

4.1 kg
