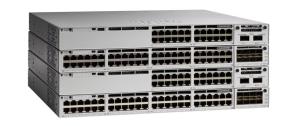

Catalyst 9300 48-port Mgig Data Only Network Essentials

Introduction

A secure workplace. Anywhere. Everywhere.
Transform your network for the demands of hybrid work. Build a secure foundation that unlocks automation, simplicity, and insights.

Transform your workplace
Get the bandwidth, speed, and scale you need to support your hybrid teams, however they choose to work.

Secure your network from the inside out
Empower your network with built-in encryption and advanced AI/ML for continuous zero-trust security.

Manage your network, your way
Deliver exceptional network experiences with the Cisco DNA Center platform or cloud monitoring for Catalyst.

Build sustainability into your network
Use the network as the foundation for smarter, more sustainable buildings that are energy-efficient and promote the occupants' well-being.

Management features

Switch type

Managed

Switch layer

L3

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Y

Data transmission

Switching capacity

2000 Gbit/s

MAC address table

32000 entries

Jumbo frames support

Y

Jumbo frames

9198

Design

Rack mounting

Y

Stackable

Y

LED indicators

Y

Performance

Internal memory

16384 MB

Flash memory

16384 MB

Mean time between failures (MTBF)

206480 h

Power

Power source

AC

Power supply included

Y

AC input voltage

100 - 230 V

AC input frequency

50/60 Hz

Power consumption (typical)

715 W

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

445 mm

Depth

483 mm

Height

44 mm

Weight

6.62 kg
