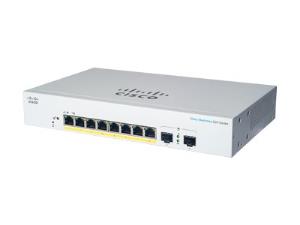

Product Details
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Configuring Location Settings (CLI)
Y
System event log
Y
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Network
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
N
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
VLAN support
Y
Number of VLANs
256
Data transmission
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8192 entries
Jumbo frames support
Y
Jumbo frames
9216
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP client
Access Control List (ACL)
Y
Access Control List (ACL) rules
512
IGMP snooping
Y
IGMP entries
256
Security algorithms
SSL/TLS
MAC address filtering
Y
SSH/SSL support
Y
Loop protection
Y
BPDU filtering/protection
Y
Multicast features
Multicast support
Y
Number of multicast groups filtered
256
Protocols
Management protocols
SNMP
GARP VLAN Registration Protocol (GVRP)
Y
Design
Rack mounting
Y
Product colour
White
Reset button
Y
LED indicators
Activity, Link, Speed, System
Performance
Internal memory
256 MB
Flash memory
64 MB
Firmware upgradeable
Y
Power
Power source
AC
Power supply included
Y
Power consumption (typical)
5.7 W
Power consumption (max)
81.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
8
Total Power over Ethernet (PoE) budget
65 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
273.43 BTU/h
Weight & dimensions
Width
279 mm
Depth
170 mm
Height
44 mm
Weight
1.18 kg
Logistics data
Harmonized System (HS) code
85176990
