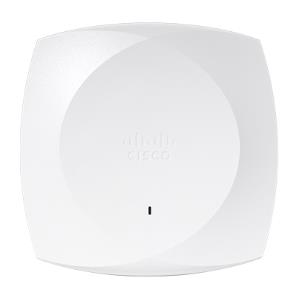

Wireless 9178i W7 4 Radio 3 Band 4x4uwb

Introduction

High-Performance Wi-Fi 7 Wireless

Cisco Wireless 9176 Series Wi-Fi 7 access points are ideal for high-density environments and critical applications. These access points also allow choosing between on-premises and cloud management. Cisco Wireless' Wi-Fi 7 access points can leverage Wi-Fi 7 to support video streaming, augmented reality (AR), and virtual reality (VR) applications. These access points offer real-time insights and personalized user experiences.

The Cisco Wireless 9176 Series Wi-Fi 7 access points enable operation in the 2.4, 5 and 6GHz bands for higher throughput and capacity. These access points provide three 4x4 radios and IoT radios.

The Cisco Wireless 9176 Series offers an Omni-directional antenna model, the CW9176I, suitable for most enterprise deployments and an internal directional antenna model, the CW9176D1, designed for use cases and areas with high ceilings such as auditoriums, warehouses, and other large open space areas. The CW9176D1 should be leveraged where typically external antennas would be required. Since the CW9176D1 uses a built-in directional antenna, it eliminates the need for additional hardware to achieve ideal wireless coverage.

Operational management is flexible because the network management can be changed anytime. If a network with Cisco Wireless 9176 Series access points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware.

Cisco Meraki Cloud Management
Pairing the Cisco Wireless 9176 Series access points with the Meraki cloud platform provides a unified IT experience for network monitoring and management. The Meraki dashboard has an intuitive and interactive web interface.

Through the dashboard, Meraki provides sophisticated and scalable tools to automate network optimization, deploy policy and segmentation configurations across thousands of sites and devices. It also can manage a full-stack network with SD-WAN, Access, and IoT technologies. The platform supports over 3.5 million active networks around the world.

Working together, the Cisco Wireless 9176 Series and Cisco Meraki offer such features as:

- Cisco Spaces
- Cisco Identity Services Engine
- Meraki Health intelligent optimization and assurance
- Meraki Vision, smart cameras, and sensors for network closet monitoring

Cisco Catalyst Center and Catalyst 9800 WLC support
Cisco Wireless 9176 Series access points can also be managed with Catalyst 9800 WLC and Cisco Catalyst Center. Cisco Catalyst Center allows you to understand your network with real-time analytics, quickly detect and contain security threats, and easily provide network-wide consistency through automation and virtualization.

Working together, the Cisco Wireless 9176 Series and Catalyst Center offer such features as:

- Cisco Spaces
- Cisco Identity Services Engine
- Cisco Catalyst Center Analytics and Assurance along with Intelligence Capture (iCAP)

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Maximum data transfer rate

18000 Mbit/s

Ethernet LAN data rates

100,1000,2500,5000,10000 Mbit/s

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n

Bluetooth

Yes

Bluetooth version

5.3

Bluetooth Low Energy (BLE)

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Spread spectrum method

OFDMA

Band steering

Yes

BeamForming

Yes

Security

Security algorithms

WPA-PSK, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

1

Power

Power over Ethernet (PoE)

Yes

Power consumption (typical)

9 W

Design

Placement

Ceiling, Wall

Product colour

White

LED indicators

Yes

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antennas quantity

4

Antenna gain level (max)

7 dBi

Weight & dimensions

Width

242.3 mm

Depth

242.2 mm

Height

52.8 mm

Weight

1.53 kg

Packaging content

Quantity per pack

1 pc(s)

Quick start guide

Yes

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-30 - 70 °C
