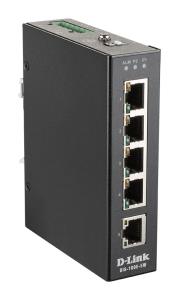

Switch Dis-100e-5w 5 X 10/100basetx Ports Industrial Fast Ethernet Unmanaged Black

Introduction

Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.

Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That's why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Management features

Switch type

Unmanaged

Switch layer

L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Relay outputs

1

Network

Networking standards

IEEE 802.3x

10G support

N

Copper ethernet cabling technology

10BASE-T,100BASE-TX,100BASE-T

Full duplex

Y

Flow control support

Y

Broadcast storm control

Y

Auto MDI/MDI-X

Y

Auto-negotiation

Y

Data transmission

MAC address table

1000 entries

Store-and-forward

Y

Design

Rack mounting

Y

Stackable

Y

Product colour

Black

International Protection (IP) code

IP30

Wall mountable

Y

DIN rail mounting

Y

Certification

UL 60950-1 CE FCC

Performance

Plug and Play

Y

Mean time between failures (MTBF)

219000 h

Technical details

Shipping (inner) case height

20 cm

Shipping (inner) case width

30.5 cm

Shipping (inner) case length

43 cm

Shipping (inner) case net weight

5.78 kg

Products per shipping (inner) case

10 pc(s)

Pallet gross weight (air)

226.4 kg

Master (outer) cases per pallet (air)

36 pc(s)

Products per pallet (air)

360 pc(s)

Pallet gross length

120 cm

Pallet gross width

110 cm

Pallet height (air)

135 cm

Pallet gross weight (sea)

330.7 kg

Master (outer) cases per pallet (sea)

54 pc(s)

Products per pallet (sea)

540 pc(s)

Pallet height (sea)

195 cm

Shipping (inner) case gross weight

5.79 kg

Power

DC input voltage

12 - 58 V

Power consumption (typical)

0.95 W

Power consumption (max)

1.56 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

29.1 mm

Depth

89.4 mm

Height

109.2 mm

Weight

320 g

Packaging data

Package width

140 mm

Package depth

178 mm

Package height

83 mm

Package weight

488 g
