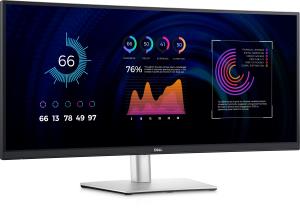

Curved USB-c Hub Monitor - P3424we - 34in - 3440x1440 Wqhd - Black

Introduction

Focus like never before on this immersive, curved monitor with a WQHD screen, USB-C power delivery of up to 90W and RJ45 Ethernet connectivity.

Display

Display diagonal

86.7 cm (34.1")

Display resolution

3440 x 1440 pixels

HD type

4K Ultra HD

Native aspect ratio

21:9

Display technology

LCD

Panel type

IPS

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

300 cd/m²

Response time

8 ms

Anti-glare screen

Yes

Screen shape

Curved

Screen curvature rating

3800R

Supported graphics resolutions

640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200, 1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440

Supported video modes

480p, 576p, 720p, 1080i, 1080p

Contrast ratio (typical)

1000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Response time (fast)

5 ms

Pixel pitch

0.2325 x 0.2325 mm

Pixel density

109.24 ppi

Viewable size, horizontal

80 cm

Viewable size, vertical

33.5 cm

Viewable size diagonal

86.7 cm

Digital horizontal frequency

30 - 90 kHz

Digital vertical frequency

56 - 76 Hz

Display diagonal (metric)

86.72 cm

High Dynamic Range (HDR) supported

No

Surface hardness

3H

RGB colour space

sRGB

Colour gamut

99%

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

Smart modes

Standard

Multimedia

Built-in speaker(s)

No

Built-in camera

No

Design

Market positioning

Office

Product colour

Black

Front bezel colour

Black

Feet colour

Silver

Heavy metals free

Hg (mercury)

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-C

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

USB Power Delivery up to

90 W

HDMI

Yes

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

1

DisplayPort version

1.2

Headphone out

No

Microphone in

No

PC Audio in

No

Built-in KVM switch

Yes

HDCP

Yes

HDCP version

2.3

AC (power) in

Yes

Network

Wi-Fi

No

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Height adjustment

15 cm

Pivot

No

Swivelling

Yes

Swivel angle range

-30 - 30°

Tilt angle range

-5 - 21°

Picture-in-Picture

Yes

On Screen Display (OSD)

Yes

Plug and Play

Yes

LED indicators

Yes

Tilt adjustment

Yes

Power

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

32 kWh

Power consumption (typical)

31.7 W

Power consumption (standby)

0.3 W

Power consumption (max)

180 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

2 A

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 5000 m

Non-operating altitude

5000 - 12192 m

Packaging content

Stand included

Yes

Cables included

AC, DisplayPort, USB Type-A to USB Type-B, USB Type-C to USB Type-C

Power adapter included

Yes

Remote control included

No

Stylus included

No

Quick start guide

Yes

DisplayPort cable length

1.8 m

Weight & dimensions

Width (with stand)

815.7 mm

Depth (with stand)

237.4 mm

Height (with stand)

541.1 mm

Weight (with stand)

10.2 kg

Width (without stand)

815.7 mm

Depth (without stand)

58.1 mm

Height (without stand)

365.4 mm

Weight (without stand)

6.95 kg

Bezel width (side)

8.7 mm

Bezel width (top)

8.7 mm

Bezel width (bottom)

2.19 cm

Packaging data

Package weight

14.8 kg

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR, EPEAT Gold, RoHS, TCO

Doesn't contain

PVC/BFR

Carbon footprint

Total carbon footprint

777 kg of CO2e

Total carbon emissions (Standard deviation)

198 kg of CO2e

Carbon emissions (Manufacturing)

436 kg of CO2e

Carbon emissions (Logistics)

72 kg of CO2e

Carbon emissions (Use)

261 kg of CO2e

Carbon emissions (End-of-Life)

8 kg of CO2e

Total carbon emissions (w/o Use phase)

516 kg of CO2e

PAIA version

1.3.2

Other features

Ethernet LAN (RJ-45) ports

1
