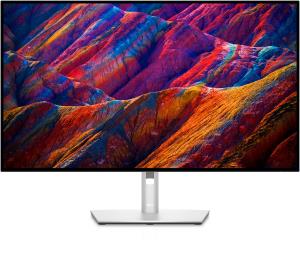

Desktop USB-c Monitor - U3223qe - 32in - 3840x2160 At 60 Hz

Introduction

Be your most productive on a 31.5-inch 4K monitor with brilliant color and contrast that features groundbreaking IPS Black technology and a connectivity hub.

Display

Display diagonal

80 cm (31.5")

Display brightness (typical)

400 cd/m²

Display resolution

3840 x 2160 pixels

Native aspect ratio

16:9

Response time

8 ms

HD type

4K Ultra HD

Display technology

LCD

Backlight type

LED

Anti-glare screen

Y

Screen shape

Flat

Supported video modes

1080i,1080p,480p,720p,576p

Contrast ratio (typical)

2000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Panel type

IPS

Response time (fast)

5 ms

Pixel pitch

0.18159 x 0.18159 mm

Pixel density

137.68 ppi

Horizontal scan range

15 - 140 kHz

Vertical scan range

23 - 86 Hz

Viewable size, horizontal

69.7 cm

Viewable size, vertical

39.2 cm

Display diagonal (metric)

80.01 cm

DDC/CI

Y

Heat dissipation

98.27 BTU/h

Surface hardness

3H

RGB colour space

sRGB

sRGB coverage (typical)

100%

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Flicker-free technology

Y

Low Blue Light technology

Y

Multimedia

Built-in speaker(s)

N

Built-in camera

N

Design

Market positioning

Graphics design

Product colour

Silver

Front bezel colour

Black

Feet colour

Silver

Heavy metals free

Hg (mercury)

Compliance industry standards

ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.

Ports & interfaces

Built-in USB hub

Y

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

5

USB Power Delivery

Y

USB Power Delivery up to

90 W

HDMI

Y

HDMI ports quantity

1

HDMI version

2.0

DisplayPorts quantity

2

Audio output

Y

Headphone out

Y

Headphone outputs

1

Headphone connectivity

3.5 mm

HDCP

Y

Ergonomics

Panel mounting interface

100 x 100 mm

Cable lock slot

Y

VESA mounting

Y

Height adjustment

Y

Pivot

N

Swivelling

Y

Swivel angle range

-30 - 30°

Tiltable

Y

Tilt angle range

-5 - 21°

On Screen Display (OSD)

Y

Plug and Play

Y

Power

Power consumption (typical)

29.4 W

Power consumption (standby)

0.3 W

Power consumption (max)

220 W

Power consumption (off)

0.2 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

2.7 A

Power supply type

Internal

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Sustainability

Sustainability certificates

RoHS, TCO, ENERGY STAR, EPEAT Gold

Doesn't contain

PVC/BFR, Arsenic

Weight & dimensions

Width (with stand)

712.6 mm

Depth (with stand)

233.2 mm

Height (with stand)

469.3 mm

Weight (with stand)

9.98 kg

Width (without stand)

71.3 cm

Depth (without stand)

5.58 cm

Height (without stand)

41 cm

Bezel width (side)

7.65 mm

Bezel width (top)

7.65 mm

Bezel width (bottom)

1.01 cm

Packaging data

Stand included

Y

Cables included

AC, DisplayPort, USB Type-C to USB Type-A, USB Type-C to USB Type-C

Quick start guide

Y

Package weight

14.5 kg

Other features

DCI-P3 coverage

98%

Picture-by-Picture (PbP)

Y

Maximum resolution

3840 x 2160 pixels

RJ-45 ports quantity

1

Power management

Y
