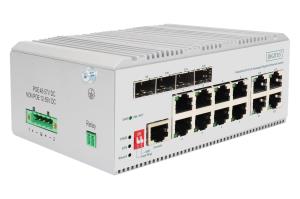

Gigabit Ethernet Switch - Industrial 8+4 L2 managed

Introduction

The DN-651145 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports.

- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards;,
- Data transmission distance is 100 meters.
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control, Panel indicators monitor working status and assist in fault analysis.
- High energy aluminum alloy roof heat conduction groove design.
- Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
- High reliability design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology.
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup.
- Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
- Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP

"The DN-651145 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651145 offers excellent security policy, QoS policy, and rich VLAN function. Additionally, it has a ring network function that allows you to set up a ring network. With this feature, the switches form a ring network topology manually. The ring network is redundant, highly reliable, and won't affect data forwarding in case a link is broken.

The device is designed with a no-fan, low power consumption design, making it easy to use, compact, and beautiful. It is also simple to install. The product meets Ethernet standards, has lightning protection, static protection mechanisms, and operates in a temperature range of -40°C to 75°C. This guarantees stable performance, safety, and reliability. V1 can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, among others."

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

System event log

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

8

Combo SFP ports quantity

4

Console port

RJ-45

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

No

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

MAC address auto-learning supported

Yes

VLAN support

No

Virtual LAN features

MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Optical fiber

Transmission distance (max)

0.1 km

Data transmission

Switching capacity

24 Gbit/s

Forwarding rate

17.86 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9216

Packet buffer memory

4.1 MB

Security

DHCP features

DHCP relay, DHCP snooping

Access Control List (ACL)

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

Authentication type

RADIUS, TACACS+

Design

Product colour

Grey

Housing material

Aluminium

LED indicators

Activity, Link, Power, System

Vandal-proof

No

Suitable for outdoor use

No

Country of origin

China

Performance

Fanless

Yes

Mean time between failures (MTBF)

100000 h

Power

Power source

DC

DC input voltage

12 - 55 V

Surge protection

Yes

Surge protection voltage

6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Power over Ethernet (PoE) power per port

30 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

109 mm

Depth

62 mm

Height

145 mm

Packaging data

Package width

190 mm

Package depth

234 mm

Package height

234 mm

Package volume

3823.56 cm³

Package weight

1.41 kg

Logistics data

UK Trade Tariff code

85176200
