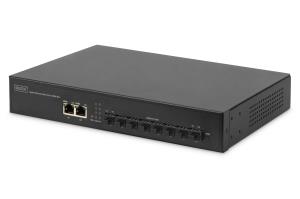

Gigabit Ethernet Switch 8-port SFP + 2-port unmanaged

Introduction

Compatible with singlemode, multimode and single/double fiber optic SFP. Suitable for installation in 19" server cabinets

- Supports MDI / MDI-X function for RJ45
- Supports auto-negotiate, half/full duplex
- Supports full-duplex flow control
- Supports Store and Forward
- SFP module - hot swappable
- Low power consumption, low heat generation, high stability

The DIGITUS® gigabit fiber optic switch makes 8 fiber optic SFP ports and 2 RJ45 Uplink ports with gigabit bandwidth available. Economical acquisition costs, simple operation and high performance are the strengths of this fiber optic switch. The switch is designed for FTTX applications such as FTTN, FTTC, FTTB, FTTD or FTTH, with the areas of application primarily for fiber optic LANs, industrial Ethernet environments, distributed control systems and digital video surveillance. The switch can be used in campus networks, remote LAN expansions, metro Ethernet distributions and ISP backbone applications. The optical modules can be exchanged during operation (hot swappable). This economical switch offers a network layout that simplifies the installation of Wireless Access Points and IP-based surveillance cameras in commercial or private networks. It can be mounted as a 19" rack in server cabinets (1U) or used as a desktop switch. It offers the perfect network solution for work groups and for intelligent LAN fiber optic access.

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber ports quantity

8

Fiber optic connector

SFP

Network

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G support

N

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

N

Data transmission

Switching capacity

20 Gbit/s

MAC address table

8 entries

Design

Rack mounting

Y

Form factor

1U

Product colour

Black

LED indicators

Activity, Link, Power

Wall mountable

Y

Vandal-proof

N

Suitable for outdoor use

N

Country of origin

China

Power

Power supply included

Y

AC input voltage

90 - 264 V

AC input frequency

50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

-20 - 65 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

160 mm

Depth

280 mm

Height

42 mm

Weight

1.5 kg

Packaging data

Cables included

AC

Quick start guide

Y

Manual

Y

Package width

280 mm

Package depth

160 mm

Package volume

1881.6 cm³

Package weight

1.9 kg

Logistics data

UK Trade Tariff code

85176200

Other features

Ethernet interface type

Gigabit Ethernet
