Product Details
Introduction

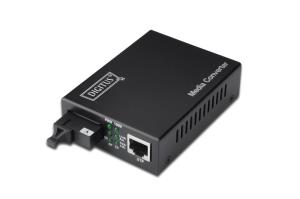

The perfect converter solution for various fiber media
- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- Wavelength: Tx 1310nm / Rx 1550nm
The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
Network
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3,IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Auto MDI/MDI-X
Y
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Y
Performance
Maximum transfer distance
20000 m
Wavelength
1550 nm
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Tx power (min)
-15 dBmW
Tx power (max)
-8 dBmW
Rx power (min)
-36 dBmW
Sensitivity
-36 dBmW
Buffer size
128 KB
Design
Internal
N
LED indicators
Activity, Link, Status
Product colour
Black
Country of origin
China
Certification
FCC, CE
Power
Input voltage
5 V
Input current
0.8 A
Power consumption (typical)
2.5 W
Power over Ethernet (PoE)
N
External power adapter
Y
Weight & dimensions
Width
70 mm
Depth
95 mm
Height
26 mm
Weight
200 g
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Packaging data
Package width
130 mm
Package depth
55 mm
Package volume
1716 cm³
Package weight
450 g
Logistics data
UK Trade Tariff code
85176200
