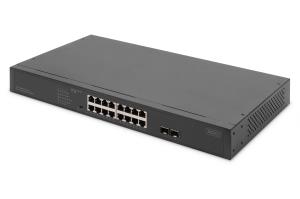

Gigabit switch - 16-Port 19 Zoll, unmanaged,2 Uplink Ports, SFP

Introduction

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 250 W

- Support IEEE802.3af/at Standard
- Single port output power up to 30W
- Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
- Support port power supply prioritization, guarantee the continuous power supply of key nodes
- Panel indicators monitor working status and help fault analysis
- Support VLAN
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

The DN-95347-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard.
With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices.
The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritizing the port power supply, the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximize flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimizes data transmission efficiency. Overall, the DN-95347-2 PoE switch offers a powerful, intelligent and reliable solution for the power supply of network components that meets today's requirements for modern network infrastructures.

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

16

SFP module slots quantity

2

Uplink ports quantity

2

Power connector

AC-in jack

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

No

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

MAC address auto-learning supported

Yes

MAC address auto-aging supported

Yes

VLAN support

Yes

Data transmission

Switching capacity

36 Gbit/s

Forwarding rate

26.78 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9216

Packet buffer memory

4.1 MB

Design

Rack mounting

Yes

Stackable

No

Form factor

1U

Product colour

Grey

Housing material

Metal

LED indicators

Yes

Number of fans

2 fan(s)

Country of origin

China

Power

Power source

AC

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

260 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) voltage

55 V

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

250 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

440 mm

Depth

207 mm

Height

44 mm

Packaging data

Cables included

AC

Quick start guide

Yes

Package width

320 mm

Package depth

500 mm

Package height

75 mm

Package weight

3.17 kg
