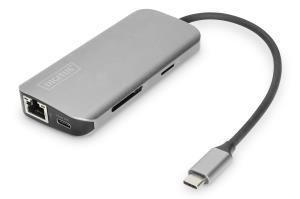

Universal Docking Station USB Type-C - 2x USB3.0 / RJ45 / 2x HDMI / Micro SD / SD - 100W power delivery

Introduction

Extend your notebook by 8 additional interfaces such as 4K HDMI®, Gigabit Ethernet or USB 3.0 - with USB-C™ Power Delivery

- 8 additional interfaces for your notebook / PC for video, data, power & Ethernet
- 2 x UHD 4K / 30 Hz HDMI® connections (Dual-Display feature)
- 2 x USB 3.0 connections (SuperSpeed, 5 Gbps) - for quick data transfer
- 1 x PD 3.0 (Power Delivery) USB-C™ connection to quickly charge your notebook
- 2 x card reader (SD / microSD, up to 2 TB)
- 1 x RJ45 Gigabit Ethernet interface - Connects your notebook to the Internet / LAN
- Extended screen or duplicated screen display possible under Windows
- Supports SST & MST Mode
- High-quality housing with a brushed aluminum finish
- Cable length: 20 cm

The DIGITUS® USB-C™ docking station extends your notebook by 8 additional interfaces. Among other things, 2 HDMI® interfaces with resolutions of up to 4K / 30 Hz are integrated. When connecting 2 monitors simultaneously, a resolution of Full HD 1080P / 60 Hz is supported. While the docking station is in use, you can charge the connected notebook via the existing USB-C™ Power Delivery Port. The maximum charging capacity is 100 W. 2 x USB 3.0 connections are also included to which according periphery devices such as a keyboard, mouse or an external hard drive / USB stick can be connected. With Battery Charge (BC 1.2), they also offer the possibility of charging devices such as smartphones or tablets. You can connect the existing Gigabit RJ45 connection with your router and, thus, the Internet. This then allows you to access your connected notebook. Two card slots for SD and Micro SC cards round off the docking station. Memory cards of up to 2 TB are supported. The compact housing with a brushed aluminum finish boasts a stylish and elegant look and is easily portable. Thanks to Plug and Play, a driver installation is not required. This way, the docking station can also be connected to external systems quickly.

Ports & interfaces

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Hub interfaces

HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

2

Maximum resolution (HDMI)

3840 x 2160 pixels

Ports quantity

8

Ethernet LAN (RJ-45) ports

1

Card reader integrated

Y

Card reader slot

2

Compatible memory cards

MicroSD (TransFlash), SD

Features

Data transfer rate

5 Mbit/s

Product colour

Aluminium

Housing material

Aluminium

USB Power Delivery

Y

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

Number of displays supported

2

Hot-swap

Y

Cable length

0.2 m

Plug and Play

Y

Country of origin

China

Certification

CE

Network

Ethernet interface type

Gigabit Ethernet

Power

Power supply type

USB

System requirements

Windows operating systems supported

Windows 10,Windows 7,Windows 8,Windows 8.1

Mac operating systems supported

Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Other operating systems supported

Chrome

Weight & dimensions

Width

50 mm

Depth

105 mm

Height

16 mm

Weight

80 g

Packaging data

Quantity per pack

1 pc(s)

Package width

135 mm

Package depth

175 mm

Package height

25 mm

Package volume

590.625 cm³

Package weight

170 g

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Design

Cable colour

Black

Logistics data

UK Trade Tariff code

84718000

Other features

Chipset

VL102/VM3332/PS176/VL817/GL3224/RTL8153B

Maximum resolution

3840 x 2160 pixels
