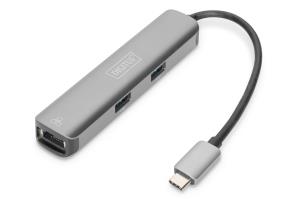

Dock USB Type-C - HDMI (4K/30Hz) / 3x USB-A RJ45

Introduction

Extend your notebook, tablet or smartphone with 5 additional interfaces – HDMI®, RJ45 (LAN) & 3 x USB 3.0

- Use this adapter to send your desktop to a second display
- Browse the network at Gigabit speeds thanks to the integrated RJ45 (LAN) port
- Use the three additional USB 3.0 ports with SuperSpeed for additional peripheral equipment
- All 3 USB connections can be used at the same time
- Gigabit Ethernet interface: Supports 10/100/1000 Mbps
- Supports USB 3.0 SuperSpeed (5 Gbps max.) for data transmission in a very short time
- Supports HDMI® resolution up to UHD 4K/30 Hz
- Compact dimensions – ideal for travel
- Plug and Play – no driver/software installation required

With the DIGITUS® USB-C™ Adapter, you have the option of connecting an additional HDMI® display to your existing device with a USB-C™ port. This allows you to reproduce your content on a large monitor, projector or TV in 4K resolution, for example – easy streaming with minimal effort. The Gigabit Ethernet Port (RJ45) enables high-speed data transmission in your network, transmit data at up to 1000 Mbps! Two additional USB 3.0 connections are available for you to connect other peripheral equipment. For instance, USB memory sticks or a mouse/keyboard combination can be used here. You can even connect an additional USB hub to increase the number of USB connections. Thanks to its compact design, the DIGITUS® Docking Station is easy to travel with – perfect for business trips and presentations on HDMI® displays of all kinds.

Ports & interfaces

Host interface

USB Type-C

Hub interfaces

HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

1

HDMI version

1.4b

Maximum resolution (HDMI)

3840 x 2160 pixels

Ports quantity

5

Ethernet LAN (RJ-45) ports

1

Card reader integrated

N

Features

Data transfer rate

5000 Mbit/s

Product colour

Grey

Housing material

Aluminium

Number of displays supported

1

Cable length

0.15 m

Plug and Play

Y

Country of origin

China

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Weight & dimensions

Width

23 mm

Depth

115 mm

Height

17 mm

Weight

50.5 g

Packaging data

Package width

115 mm

Package depth

25 mm

Package volume

531.875 cm³

Package weight

100 g

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Logistics data

UK Trade Tariff code

84718000

Other features

Maximum resolution

3840 x 2160 pixels
