USB hard drive enclosure - NVMe 40 Gbps USB 4.0 Aluminium tooling

Introduction

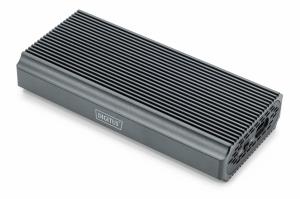

The DA-71158 M.2 NVMe SSD enclosure will become your preferred solution for high-capacity storage with super-fast data transfer speeds of up to 40 Gbps.

- Wide compatibility: Supports M.2 modules in 2230, 2242, 2260 and 2280 formats, compatible with a wide range of SSDs.
- High capacity: Offers up to 8 TB of storage space for all your files and data.
- Fast data transfer: Data transfer rate of 40 Gbps for fast file transfers and smooth performance.
- USB 4.0 interface: Latest USB technology with backwards compatibility to USB 3.2, 3.1, 3.0, 2.0 and 1.1.
- Plug and play: Simply connect via USB and get started straight away.
- Cross-platform support: Compatible with Windows, macOS, Linux, Google Chrome OS, Android and iOS.
- Robust chipset: JMS581DL chipset for reliable and efficient performance.
- LED activity indicator: Integrated LED indicator for monitoring the status of your SSD.
- Durable and stylish: aluminum housing in Pantone 430C with excellent passive heat dissipation.
- Portable design: Compact and lightweight with dimensions of 116x60x20 mm and a weight of only 150 g.

The DA-71158 USB hard disk enclosure sets new standards in terms of speed and performance for NVMe SSDs. With impressive data transfer rates of 40 Gbps for NVMe, it enables lightning-fast file transfers and seamless performance. The USB 4.0 interface is backwards compatible with USB 3.2, 3.1, 3.0, 2.0 and 1.1, ensuring maximum flexibility. It supports M.2 modules in the 2230, 2242, 2260 and 2280 formats and a maximum storage capacity of up to 8 TB, making it ideal for a wide range of SSDs. The tool-free design ensures quick and easy installation with the included mounting hardware, while the robust ASM2464PD chipset ensures reliable and efficient performance. An integrated LED indicator makes it easy to monitor SSD status, and the durable Pantone 430C aluminum housing provides excellent passive heat dissipation. With compact dimensions of 116x60x20 mm and a weight of only 150 g, the housing is perfect for mobile use. It supports plug-and-play and is powered directly via the USB port. The enclosure is compatible with Windows (11, 10, 8, 7, XP, 2004), macOS, Linux (2.4.x or higher), Google Chrome OS (9.x or higher), Android and iOS and offers comprehensive support for USB-C products.

Storage

Number of storage drives supported

1

Storage drive size

M.2

Supported storage drive interfaces

M.2

Supported storage drive heights

22 mm

Supported storage drive lengths

30,42,60,80 mm

NVMe

Yes

Maximum storage capacity

8 TB

Ports & interfaces

USB connectivity

Yes

USB version

USB4 Gen 2x2

Design

Product type

SSD enclosure

Product colour

Grey

Material

Aluminium

LED indicators

Yes

On/off switch

Yes

Performance

Data transfer rate

40 Gbit/s

Chipset

JMS581DL

Plug and Play

Yes

System requirements

Mobile operating systems supported

Android, iOS

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Operational conditions

Operating temperature (T-T)

5 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

116 mm

Depth

60 mm

Height

20 mm

Weight

150 g

Package width

93 mm

Package depth

152 mm

Package height

38 mm

Package weight

240 g

Packaging content

Cables included

USB Type-C

Quick installation guide

Yes
