Product Details
Introduction

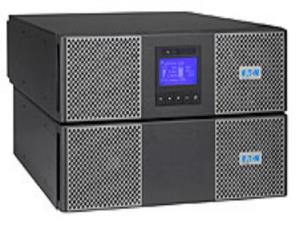

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Features
UPS topology
Double-conversion (Online)
Output power capacity
8 kVA
Output power
7200 W
Waveform
Pure sine
Input operation voltage (min)
305 V
Input operation voltage (max)
480 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
3
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Noise level
48 dB
Ports & interfaces
AC outlet types
C19 coupler, Terminal
Power plug
Terminal
AC outlets quantity
5 AC outlet(s)
USB port
Y
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Battery
Typical backup time at half load
20 min
Hot-swap battery
Y
Automatic battery test
Y
Design
Form factor
Rackmount/Tower
Rack capacity
6U
Cooling type
Active
Built-in fan
Y
Product colour
Black
Display type
LCD
LED indicators
Y
Safety
IEC/EN 62040-1
Certification
IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
700 mm
Height
260 mm
Weight
88 kg
Packaging data
Rack mount kit
Y
Management card included
Y
Bundled software
Intelligent Power Software suite
Other features
Nominal output voltage
230 V
Nominal input voltage
400 V
