Product Details
Introduction

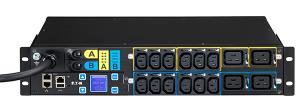

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Design
PDU types
Managed
Type
Single-phase
Form factor
Rackmount
Rack mounting
Y
Rack capacity
2U
Mounting
Horizontal
Product colour
Black
Cable colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity
16 AC outlet(s)
Power plug
IEC 60309
AC outlet types
C13 coupler, C19 coupler
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
Output connections
12 x C13 & 4 x C19
Features
LED indicators
Y
Cable length
3 m
Management features
Management protocols
SNMP, Telnet
Firmware upgradeable
Y
Firmware upgradeable via
Network, USB
Power
Nominal input voltage
230 V
AC input frequency
50 Hz
Maximum current
32 A
Nominal output voltage
230 V
Maximum input current per phase
32 A
Maximum power
7400 W
Weight & dimensions
Width
225 mm
Depth
87 mm
Dimensions (WxDxH)
225 x 87 x 445 mm
Height
445 mm
Weight
5.6 kg
Packaging data
Package weight
7.8 kg
Packaging content
Cables included
LAN (RJ-45)
Rack mount kit
Y
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Technical details
Sustainability certificates
RoHS
