LCD Touchmonitor 2002l -20in - Projected Capacitive - Fhd

Introduction

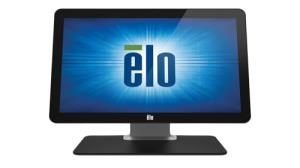

The Elo M-Series 2002L widescreen LED desktop touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness. The sleek wide aspect ratio touchscreen features a full HD edge-to-edge glass display to showcase your content.

For environments where space is limited, the 2002L offers a low profile, with versatile mounting ideal for point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

The seamless zero-bezel 19.5" multi-touch display offers 11.5% larger screen area compared to the 1919L, with beautiful full HD resolution and HDMI input. Available with cutting-edge projected capacitive (PCAP) multi-touch capability supporting up to ten-touches simultaneously offers a tablet-like interactive experience. Built to withstand the rigors of continuous public use, the 2002L is retail-hardened and is well suited for high traffic venues.

Optional color coordinated retail accessories include a magnetic stripe reader (MSR), barcode scanner and near field communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed, providing an elegant, integrated solution that eliminates the need for external brackets or attachments.

Display

Display diagonal

49.5 cm (19.5")

Display resolution

1920 x 1080 pixels

Display type

TFT-LCD

HD type

Full HD

Display technology

LCD/TFT

Aspect ratio

16:9

Response time

20 ms

Display brightness

230 cd/m²

Contrast ratio (typical)

3000:1

Horizontal scan range

31.5 - 80 kHz

Vertical scan range

50 - 60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

LED backlight

Y

Supported graphics resolutions

640 x 480 (VGA),720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

Viewable size, horizontal

43.7 cm

Viewable size, vertical

24.1 cm

Display number of colours

16.78 million colours

Design

Product colour

Black

Performance

Touch technology

Multi-touch

Touchscreen technology

Projected capacitive system

Number of simultaneous touchpoints

10

Built-in speaker(s)

Y

RMS rated power

4 W

Number of speakers

2

Built-in camera

N

Number of OSD languages

8

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Mean time between failures (MTBF)

50000 h

OmniTapps Multitouch compatibility

N

Ports & interfaces

HDMI

Y

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Thin Client

Built-in processor

N

Ergonomics

Panel mounting interface

75 x 75,100 x 100 mm

Placement supported

Horizontal/Vertical

Wall mountable

Y

LED indicators

Y

VESA mounting

Y

Power

Power consumption (typical)

18.4 W

Power consumption (off)

0.24 W

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

AC adapter output voltage

12 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 95%

Certificates

Certification

Canada cUL, IC Europe CE Japan VCCI United States UL, FCC China CCC

Weight & dimensions

Width (without stand)

48.8 cm

Depth (without stand)

19.3 cm

Height (without stand)

35.2 cm

Packaging data

Package width

419 mm

Package depth

572 mm

Package height

252 mm

Package weight

9 kg

Other features

Full HD

Y
