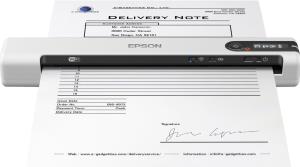

Workforce Ds-80w - Document Scanner - 1200dpi - White

Introduction

Scan anywhere
The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.

Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.

Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

Scanning

Maximum scan size

216 x 1828 mm

Optical scanning resolution

600 x 600 DPI

Colour scanning

Y

Duplex scanning

N

Input colour depth

48 bit

Output colour depth

24 bit

Input greyscale depth

16 bit

Output greyscale depth

8 bit

Output monochrome depth

8 bit

Scan speed (b/w, low res, A4)

4 sec/page

Scan speed (colour, low res, A4)

4 sec/page

Design

Scanner type

Handheld scanner

Product colour

White

Display

LCD

Colour display

N

Built-in display

Y

Performance

Sensor type

CIS

Light source

ReadyScan LED

Scan file formats

BMP, JPEG, PDF, PNG, TIFF

Daily duty cycle (max)

300 pages

Scan drivers

TWAIN,WIA,SANE,ICA

Input capacity

Auto document feeder (ADF) input capacity

1 sheets

Paper handling

Scanning media types supported

Business Card, Plastic Card, Post Card(JPN)

Maximum ISO A-series paper size

A4

Paper tray media weight

35 - 270 g/m²

Auto Document Feeder (ADF) media weight

35 - 270 g/m²

Ports & interfaces

USB port

Y

USB version

2.0

Standard interfaces

USB 2.0, Wireless LAN

Power

Power supply type

USB

Packaging data

Quantity per pack

1 pc(s)

Package width

141 mm

Package depth

330 mm

Package height

67 mm

Package weight

597 g

Network

Wi-Fi

Y

Features

Country of origin

China

System requirements

Compatible operating systems

Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP

Windows operating systems supported

Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Server operating systems supported

Windows Server 2003,Windows Server 2008,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2016

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-25 - 60 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

272 mm

Depth

47 mm

Height

34 mm

Weight

300 g

Packaging content

Cables included

USB

Bundled software

Document Capture Pro 2.0, Epson Scan 2

Other features

Output resolutions

600 dpi

Image formats supported

BMP, JPEG, TIFF, PNG

Technical details

Master (outer) case GTIN (EAN/UPC)

8715946663005

Logistics data

Products per pallet

360 pc(s)

Master (outer) case length

360 mm

Master (outer) case height

320 mm

Master (outer) case width

350 mm

Pallet gross length

120 cm

Pallet gross width

80 cm

Pallet gross height

171 cm

Products per master (outer) case

10 pc(s)

Products per pallet layer

60 pc(s)

Products per pallet layer (UK)

60 pc(s)

Products per pallet (UK)

360 pc(s)

Pallet length (UK)

120 cm

Pallet width (UK)

100 cm

Pallet height (UK)

171 cm
