Product Details
Introduction

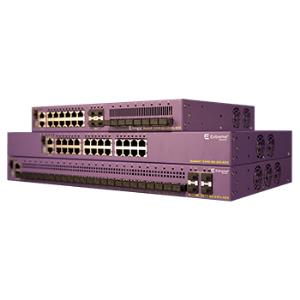

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.
The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud managed via ExtremeCloud, Extreme Networks innovative single-pane subscription-based management solution.
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
8
Console port
RJ-45
Power connector
DC-in jack
Network
Networking standards
IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
Full duplex
N
Flow control support
Y
Link aggregation
Y
VLAN support
Y
Number of VLANs
4092
Data transmission
Switching capacity
95.2 Gbit/s
Forwarding rate
128 Mpps
MAC address table
16000 entries
Jumbo frames support
Y
Design
Rack mounting
Y
Product colour
Burgundy
LED indicators
Y
Wall mountable
Y
Performance
Built-in processor
Y
Processor frequency
1000 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Flash memory
4096 MB
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
40 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
441 mm
Depth
254 mm
Height
44 mm
Weight
3.66 kg
