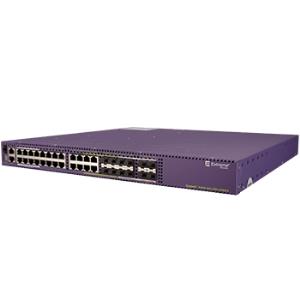

X460-g2-24t-ge4-base 10/100/1000base-t

Introduction

X460-G2 series – the scalable advanced aggregation and edge switch with the revolutionary ExtremeXOS modular operating system.

The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network.

The X460-G2 switches are effective campus-edge switches with IEEE 802.3at PoE-plus and can also serve as aggregation switches for traditional enterprise networks. The X460-G2 series is also an option for DSLAM or CMTS aggregation, or for active Ethernet access.

The X460-G2 can also be used as a top-of-rack switch for many data center environments with features such as high-density Gigabit Ethernet for concentrated data center environments; XNV™ (ExtremeXOS Network Virtualization) for centralized network-based Virtual Machine (VM) inventory, VM location history, and VM provisioning; Direct Attach™ to offload VM switching from servers, thereby improving performance; high-capacity Layer 2/Layer 3 scalability for highly virtualized data centers; and intra-rack and cross-rack stacking with industry-leading flexibility.

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

20

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

1

Combo SFP ports quantity

4

Fiber ports quantity

4

Fiber optic connector

SFP

Console port

RJ-45

USB 2.0 ports quantity

1

Network

Networking standards

IEEE 1588,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3z

10G support

Y

Full duplex

Y

Rate limiting

Y

VLAN support

Y

Number of VLANs

4092

Data transmission

Switching capacity

220 Gbit/s

Throughput

163.7 Mpps

Number of trunks

128

Jumbo frames support

Y

Packet buffer memory

4 MB

Security

Access Control List (ACL)

Y

DoS attack prevention

Y

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Purple

LED indicators

Y

Performance

Built-in processor

Y

Processor frequency

1000 MHz

Memory type

DDR3-SDRAM

Internal memory

1024 MB

Flash memory

4000 MB

Power

AC input voltage

85 - 264 V

AC input frequency

47/63 Hz

Power consumption (typical)

63 W

Power consumption (max)

125 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

10 - 95%

Operating altitude

0 - 3000 m

Weight & dimensions

Width

441 mm

Depth

432 mm

Height

44 mm

Weight

5.85 kg
