Product Details
Introduction
Extended Edge Switching

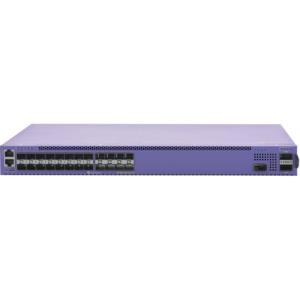

The X590 Series can serve as the controlling aggregation switch within Extreme's innovative Extended Edge Switching solution, simplifying the deployment and operation of connected edge switches. With both copper and fiber high-density 10Gb port options, the X590 Series can also flexibly accommodate top of rack and spine/leaf deployments.
ExtremeXOS Intelligent L2/L3 Switching
The ExtremeSwitching X590 Series series supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X590 Series simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products.
High-Performance 400Gb Stacking
The X590 Series supports SummitStack-V400 400Gbps high-speed stacking using 2 100Gb ports. Up to 8 X590, X690 or X870 systems can be stacked using SummitStack-V400. Any of the supported 100Gb QSFP28 direct attach cables can be used for the stacking links.
Management features
Switch type
Managed
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
24
Installed QSFP+ modules quantity
1
Network
Networking standards
IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3bm
Copper ethernet cabling technology
10BASE-T,10GBASE-T,100BASE-TX,1000BASE-TX
Cable types supported
Cat6a
Data transmission
Switching capacity
880 Gbit/s
Forwarding rate
714 Mpps
MAC address table
272000 entries
Number of queues
8
Packet buffer memory
12 MB
Security
Access Control List (ACL)
Y
Access Control List (ACL) egress
1000
Access Control List (ACL) ingress
8000
Protocols
IPv4 FIB entries
146000
IPv6 FIB entries
128000
Design
Rack mounting
Y
Stackable
Y
Product colour
Purple
Performance
Processor frequency
2.4 MHz
Memory type
DDR3-SDRAM
Internal memory
4000 MB
Flash memory
32000 MB
Noise level
79.8 dB
Mean time between failures (MTBF)
435.074 h
Power
Power supply included
Y
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
770 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
278.42 BTU/h
Weight & dimensions
Width
441 mm
Depth
488 mm
Height
43 mm
Packaging data
Manual
Y
