Product Details
Introduction

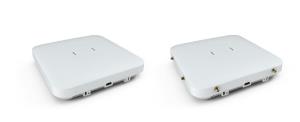

Extreme’s AP 510i/e is a high performance, enterprise class 802.11ax access point at the price/performance point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.
The AP 510i/e is powered by the WiNG 7 operating system. WiNG’s legendary distributed architecture places the intelligence at the edge where it unleashes the true capabilities and performance of 802.11ax, without bottlenecks and limits. WiNG incorporates the functionality of a controller in each access point, enabling network solutions with controller-less solutions using a virtual controller that supports up to 64 access points or hardware / VM controllers that can support up to 25000 access points.
Features
2.4 GHz
Y
5 GHz
Y
6 GHz
N
Maximum data transfer rate
4800 Mbit/s
Maximum data transfer rate (2.4 GHz)
1148 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Ethernet LAN data rates
100,1000,2500,5000 Mbit/s
Frequency band
5.1-5.8 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11r
Number of users
25000 user(s)
Bluetooth
Y
Bluetooth Low Energy (BLE)
Y
MIMO
Y
MIMO type
Multi User MIMO
Security
Security algorithms
IPSec, WPA, WPA2, WPA2-AES, WPA3
MAC address filtering
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Internal RJ-45 ports quantity
2
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) type supported
Active PoE
Power consumption (typical)
18 W
Power consumption (max)
22 W
Design
Placement
Ceiling
Product colour
White
Antenna
Antenna type
External
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
9
Antenna connector type
SMA
Number of connectors
9
Weight & dimensions
Width
229 mm
Depth
229 mm
Height
48.1 mm
Weight
1.56 kg
