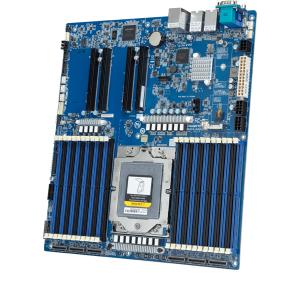

Server Motherboard - E-ATX - Amd - 9mz33ar0mr-000

Introduction

Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Processor

Processor manufacturer

AMD

Processor socket

Socket SP5

Compatible processor series

AMD EPYC 9004

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

24

Memory slots type

DIMM

Supported memory clock speeds

3600,4000,4400,4800 MHz

Storage controllers

Supported storage drive interfaces

M.2

Number of storage drives supported

8

Graphics

On-board graphics card model

Aspeed AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Front panel connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

2

VGA (D-Sub) ports quantity

1

COM ports quantity

1

Network

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

LAN controller

Broadcom BCM57416

Wi-Fi

No

Features

Product colour

Blue

Component for

Server

Motherboard form factor

Extended ATX

Motherboard chipset family

AMD

Power source type

ATX

Expansion slots

PCI Express x16 (Gen 5.x) slots

4

Number of M.2 (M) slots

1

Operational conditions

Storage temperature (T-T)

10 - 40 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

8 - 80%

Storage relative humidity (H-H)

20 - 95%

Packaging data

Package width

409 mm

Package depth

355 mm

Package height

78 mm

Weight & dimensions

Width

305 mm

Depth

330 mm

Packaging content

Cables included

SATA
