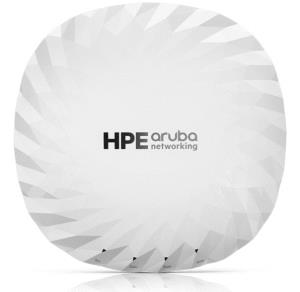

Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point

Introduction

HPE Aruba Networking 730 Series Wi-Fi 7 Campus Access Points
Our newest APs go beyond the Wi-Fi 7 standard to do more for enterprises—unlocking more channels, more IoT support, and sub 1m location precision.

Wi-Fi 7 APs that do more
Deliver more performance, more security, and more IoT connectivity for more immersive, real-time wireless experiences.

Improved performance and capacity
The 730 Series APs provide more Wi-Fi 7 performance with up to 30% more 6 GHz band capacity using patented ultra tri-band filtering to eliminate interference. Flexible radios can be customized for dual 5 GHz or dual 6 GHz to better reflect your client ecosystem. Tri-band coverage delivers up to 9.0 Gbps max aggregate data rate (capable of up to 14.4 Gbps max aggregate data rate using dual 6 GHz radio mode).

Enhanced security
The 730 Series APs, based on AOS-10, build on existing Wi-Fi security capabilities to deliver more edge security. HPE Aruba Networking Central’s Client Insights uses AI and machine learning to identify and classify 99% of known clients for better visibility and control. Dynamic Segmentation automates role-based access across wired and wireless, and new MACsec support1 extends wired encryption from switch to AP.

More IoT devices at higher densities
Eliminate IoT-device overlay gateways with the 730 Series APs that act as IoT platforms for 350+ partners. Connect 2x the IoT devices with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB-port extensions to simplify deploying and managing growing numbers and densities of IoT devices. Leverage 2x the horsepower to run app containers on APs at the edge.

Precision Wi-Fi location service
Deliver sub-1-meter location precision with a built-in GNSS receiver and barometric sensor to better support use cases such as small-device asset tracking and proximity marketing without deploying overlay technologies. The 730 Series APs are also self-locating, eliminating the time-consuming, manual task of measuring, recording, and maintaining logs of APs.

Cloud-native management
With AI-powered insights, workflow automation, and robust security, cloud-native HPE Aruba Networking Central simplifies the management and orchestration of campus, branch, remote, and data center networks.

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

2900 Mbit/s

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Ethernet LAN data rates

10,100,1000,2500,5000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az

Bluetooth

Yes

Bluetooth version

5.4

Bluetooth Low Energy (BLE)

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Trusted Platform Module (TPM)

Yes

BeamForming

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

2

DC-in jack

Yes

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

36 W

Design

Placement

Pole, Wall

Product colour

White

Cable lock slot

Yes

Cable lock slot type

Kensington

Reset button

Yes

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Weight & dimensions

Width

240 mm

Depth

240 mm

Height

56 mm

Weight

1.44 kg

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%
