Product Details
Introduction

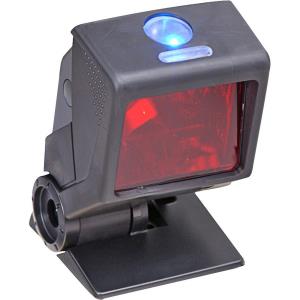

Honeywell's QuantumT® 3580 provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for QuantumT minimize required counter space, increasing available room for merchandise and advertisement displays. Ideal for presentation scanning in moderate-volume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.
Scanning
Type
Fixed bar code reader
Scanner type
1D
Sensor type
Laser
Linear (1D) barcodes supported
GS1 DataBar Expanded
2D (matrix & stacked) barcodes supported
Not supported
Read rate (max)
1650 reads/s
Light levels (direct sunlight)
0 - 4842 lx
Wavelength
650 nm
Tilt reading angle
0 - 360°
Pitch reading angle
0 - 60°
Yaw reading angle
0 - 60°
Maximum scan width
27.9 cm
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
USB
Cable length
2.8 m
Performance
LED indicators
Power
Buzzer
Y
Product colour
Black
Certification
IEC60825-1, EN60825-1, FCC, ICES, EN55022
Power
Power source type
DC
Power consumption (typical)
1.4 W
Power consumption (standby)
1.2 W
Input voltage
5 V
Power consumption
275 mA
Weight & dimensions
Width
67 mm
Depth
66 mm
Height
108 mm
Weight
170 g
Packaging data
Cables included
USB
Operational conditions
Operating temperature (T-T)
-20 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
5 - 95%
