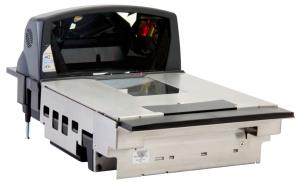

Bar Code Scanner Stratos Ms2421 399mm Scale Ready Diamonex Platter /USB/ibm 46xx

Introduction

Honeywell's Stratos® 2400 5-sided, 360°-bioptic scanner/scale increases productivity in demanding, high-volume seated environments where shorter vertical towers are required, and poor quality and highdensity bar codes are prevalent. Independent scanning planes and a modular design lower maintenance costs and ensure continuous operation.

The Stratos 2400 series provides retailers with the ability to deploy a single scanner platform across multiple store formats around the world, including stores with 353 mm (13.9"), 399 mm (15.7"), and 508 mm (20") scanner footprints. Aggressive scan performance on high density and poor quality bar codes minimizes the need for manual keying. The 2400 also excels at scanning GS1 DataBarT codes, ensuring compliance with sunrise initiatives.

Specifications

- 5-sided, 360°-Scanning: Improves productivity and operator ergonomics by reducing product orientation
- StratosSYNCTM Independent Scanning Planes: Maintains productivity and uptime via independent scanning planes
- StratosSCHOOL Operator Training Software: Improves productivity and promotes safer scanning techniques
- StratosSWAPTM Pre-Aligned Optical Scanning Modules: Minimizes downtime and lowers the cost of service via modular optical scan engines
- StratosSTATS Productivity Analytical Software: Provides data critical to maintaining checkout productivity
- Remote MasterMindTM Scanner Management Sofware: Offers a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
- Flip-Up Weigh Bar: Single or three-sided options allow cashiers to accurately weigh oversized produce, reducing shrink loss

Scanning

Type

Built-in bar code reader

Scanner type

1D

Sensor type

Laser

Linear (1D) barcodes supported

Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1-128 (UCC/EAN-128),Telepen,Trioptic,U.P.C.

2D (matrix & stacked) barcodes supported

Not supported

Read rate (max)

5400 reads/s

Light levels (direct sunlight)

0 - 4842 lx

Wavelength

650 nm

Maximum scan area

100 x 216 mm

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232,USB

Performance

International Protection (IP) code

IP55

Product colour

Black, Stainless steel

Power

Power source type

DC

Power consumption (typical)

11 W

Power consumption (standby)

5.2 W

Input voltage

5.2/12 V

Weight & dimensions

Width

292 mm

Depth

399 mm

Height

130 mm

Weight

15 kg

Packaging data

Cables included

RS-232,USB

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

5 - 95%
