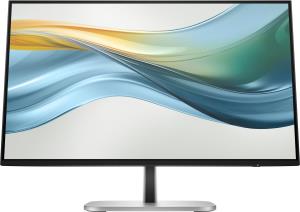

Desktop USB-C Monitor - Series 5 Pro 524pu - 24in - 1920x1080 (FHD)

Introduction

Powerfully designed to connect
Plug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C? Monitor. Its sleek, modern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.

Display

Display diagonal

60.5 cm (23.8")

Display resolution

1920 x 1080 pixels

HD type

Full HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

IPS

Touchscreen

No

Display brightness (typical)

350 cd/m²

Response time

5 ms

Display surface

Matt

Anti-glare screen

Yes

Screen shape

Flat

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)

Aspect ratio

16:9

Contrast ratio (typical)

1500:1

Contrast ratio (dynamic)

10000000:1

Maximum refresh rate

100 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.28 x 0.28 mm

Pixel density

93 ppi

Horizontal scan range

30 - 115 kHz

Vertical scan range

50 - 100 Hz

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

Display diagonal (metric)

60.5 cm

Haze rate

25%

Surface hardness

3H

Colour depth

8 bit

Colour gamut standard

sRGB

Colour gamut

100%

sRGB coverage (typical)

100%

Display bezel technology

Micro-Edge

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

HP segment

Business

Multimedia

Built-in speaker(s)

No

Built-in camera

No

Design

Market positioning

Office

Product colour

Black, Silver

Colour name

Jet black

Detachable stand

Yes

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

3

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

HDMI

Yes

HDMI ports quantity

1

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort out quantity

1

DisplayPort out version

1.4

DisplayPort version

1.4

Headphone out

No

HDCP

Yes

Network

Ethernet LAN

Yes

Remotely operated

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-45 - 45°

Tilt adjustment

Yes

Tilt angle range

-5 - 23°

On Screen Display (OSD)

Yes

Power

Energy efficiency class (SDR)

Not available

Energy efficiency class (HDR)

D

Energy consumption (SDR) per 1000 hours

14 kWh

Power consumption (typical)

22 W

Power consumption (standby)

0.5 W

Power consumption (max)

198 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

20 - 80%

Weight & dimensions

Width (with stand)

539.4 mm

Depth (with stand)

189.5 mm

Height (with stand)

503.2 mm

Weight (with stand)

5.93 kg

Width (without stand)

539.4 mm

Depth (without stand)

47.2 mm

Height (without stand)

314.3 mm

Packaging data

Package width

621 mm

Package depth

140 mm

Package height

393 mm

Package weight

8.42 kg

Package type

Box

Packaging content

Cables included

AC

Quick start guide

Yes

Bundled software

HP Display Center; HP Client Management Script Library

Sustainability

Sustainability certificates

ENERGY STAR

Other features

Country of origin

China

UNSPSC-code

43211902

RJ-45 ports quantity

1

Weight

5.93 kg

Compliance certificates

BIS, BSMI, CB, CCC, CE, CECP, EAC, Federal Communications Commission (FCC), ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Certification

Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF

Brand-specific features

HP GTIN (EAN/UPC)

197961408201

Technical details

General Product Safety Regulation (GPSR) URL

https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
