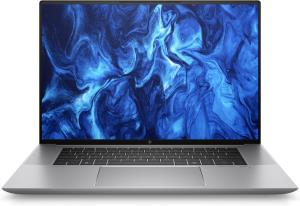

ZBook Studio G11 - 16in - Core Ultra 9 185H - 32GB RAM - 1TB SSD - RTX 4070 8GB - Win11 Pro - Qwerty US/Int'l

Introduction

Powerfully immersive. Perfectly sized
Be ready when inspiration strikes. Packed with professional performance in an incredibly sleek PC that comfortably fits in your bag, the ZBook Studio is engineered to get you in the zone and help you stay focused. Now you can build complex assemblies, render in real-time or visualize data—from anywhere.

Design

Product type

Mobile workstation

Product colour

Silver

Form factor

Clamshell

Market positioning

Performance

Introduction year

2024

Original brand name

HP

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

Native aspect ratio

16:10

Anti-glare screen

Yes

Display bezel technology

Micro-Edge

Display brightness

400 cd/m²

Display diagonal (metric)

40.6 cm

RGB colour space

sRGB

Colour gamut

100%

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 9

Processor generation

Intel® Core™ Ultra (Series 1)

Processor model

185H

Processor cores

16

Processor threads

22

Processor boost frequency

5.1 GHz

Processor frequency

2.3 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

5.1 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

2.3 GHz

Efficient-core base frequency

1.8 GHz

Low Power Efficient-core Base Frequency

1000 MHz

Processor cache

24 MB

Processor cache type

L3

Processor base power

45 W

Maximum turbo power

115 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory

32 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

2 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

64 GB

Non-ECC

Yes

Storage

Total storage capacity

1 TB

Storage media

SSD

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD memory type

TLC

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

Optical drive type

No

Graphics

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA GeForce RTX 4070

Discrete graphics card memory

8 GB

Discrete graphics memory type

GDDR6

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

Yes

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera HD type

HD

Infrared (IR) camera

Yes

Network

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Mobile network connection

No

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 7 BE200

WLAN controller manufacturer

Intel

Bluetooth

Yes

Bluetooth version

5.4

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI ports quantity

1

Thunderbolt 4 ports quantity

2

Combo headphone/mic port

Yes

Charging port type

DC-in jack

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

USB Sleep-and-Charge

Yes

USB Sleep-and-Charge ports

2

Keyboard

Keyboard special features

Étanche

Pointing device

Clickpad

Keyboard layout

QWERTY

Numeric keypad

No

Keyboard backlit

Yes

Spill-resistant keyboard

Yes

Full-size keyboard

Yes

Input device model

Clavier silencieux HP Premium

Software

Operating system installed

Windows 11 Pro

Bundled software

HP Wolf Pro Security Edition (1 year)

Brand-specific features

HP speaker type

HP Dual Speakers

HP Connection Optimizer

Yes

HP Support Assistant

Yes

HP front camera

HP Webcam HD IR

HP segment

Business

HP GTIN (EAN/UPC)

198828181251

Battery

Battery technology

Lithium Polymer (LiPo)

Number of battery cells

6

Battery capacity

86 Wh

Fast charging

Yes

Fast charging time (50%)

30 min

Power

AC adapter power

150 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Security

Cable lock slot

Yes

Fingerprint reader

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Sustainability

Sustainability certificates

ENERGY STAR, TCO

Sustainable technologies and materials

Low Halogen

Weight & dimensions

Width

356 mm

Depth

242 mm

Height (front)

1.9 cm

Height (rear)

1.8 cm

Weight

1.73 kg

Packaging data

Package width

552 mm

Package depth

69 mm

Package height

345 mm

Logistics data

Harmonized System (HS) code

8471300000
