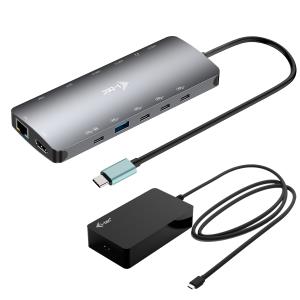

USB-c Metal Nano 3x Display Docking Station - USB-c - Power Delivery 140w With Universal Charger 140 W

Introduction

Small but very powerful metal USB-C docking station capable of supporting up to three external monitors simultaneously*. Simply connect your laptop or tablet (no need to install drivers) and reap the benefits of quick USB data transfer, connection to the internet via a LAN port, and the ability to connect your headset. And of course, the docking station can also power your laptop with up to 140 W **, meaning you will be able to charge all laptops and tablets that support charging via USB-C (USB-C Power Delivery).

Brushed aluminium body grants the docking station sufficient durability and resilience even during frequent travel. The integrated USB-C cable is sufficiently long for comfortable connection even if the USB-C port is located in the upper portion of the screen frame (typical for hybrid laptops/tablets).

The docking station is also fully compatible with tablets and laptops featuring a modern Thunderbolt port.

- Connect up to three external monitors
- Power delivery: up to 140 W **
- Fitted with two HDMI and one USB-C video port
- 1x USB-C vith video 4K/60 and data (10 Gbps) 3x USB-C (10Gbps), 1x USB-A 10 Gbps) and 2x USB-A 2.0 ports will allow you to easily connect your monitor, USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone on the front panel
- Supports Windows 10/11, macOS, Android, Chrome OS and Linux
- USB-C Charger 140W included

* macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, all connected external monitors will display the same image.

** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0 protocol, the charging power will be up to 100W)

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

4

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.1

USB Power Delivery up to

140 W

HDMI ports quantity

2

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Data transfer rate

10 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

3

Product colour

Grey

Housing material

Aluminium

Power

Power source type

AC

AC input voltage

100 - 240 V

AC input frequency

50-60 Hz

Input current

1.8 A

Power supply

140 W

Output voltage

5 / 9 / 12 / 15 / 20 / 28 V

Output current

5 A

Compatible power plug types

EU

Software

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Mobile operating systems supported

Android, iOS, iPadOS

Other operating systems supported

ChromeOS

Weight & dimensions

Width

155.2 mm

Depth

60.3 mm

Height

18 mm

Weight

142 g

Packaging content

AC adapter included

Yes

Quick start guide

Yes
