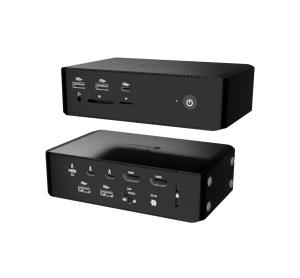

Thunderbolt 5 4x Display Docking Station - USB-c - Power Delivery 140w

Introduction

Extreme performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. The most powerful i-tec docking station on the market!

Crystal-clear image quality, lightning-fast internet, and data transfer speeds of up to 12 GB per second thanks to the integrated Thunderbolt 5 output port. Of course, you can also connect headphones or audio devices and charge your laptop (up to 140 W**) – all through a single cable (a 100 cm certified Thunderbolt 5 cable is included in the package).

Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 x 4320) at 60 Hz refresh rate – equivalent to the resolution of four 4K monitors. This makes it an ideal solution for graphic designers, analysts, developers, video editors, and high-resolution video enthusiasts.

The docking station is now compatible not only with Thunderbolt 5/4/3 ports but also with USB4 and USB-C, making it a flexible solution for businesses and users who work with laptops and tablets equipped with different types of ports.

- Support for up to 4 external monitors* with resolutions up to 2x 8K/60 or 4x 4K/60 Hz
- Video ports: 2x HDMI, 2x Thunderbolt 5
- 1x USB-C (10 Gbps)
- 4x USB-A (10 Gbps) with BC 1.2 fast charging support (7.5W)
- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone port
- 1x SD/microSD slot
- Laptop charging up to 140 W**
- Power button for docking station

* The maximum number of connected monitors depends on the performance of your computer and operating system.

With Thunderbolt 5 and Windows laptops, you can connect up to four monitors (the laptop lid must be closed). With Apple laptops running macOS, a maximum of two external monitors is supported.

** If your laptop or tablet supports the modern USB-C Power Delivery PD 3.1 charging protocol, the docking station provides up to 140 W charging power (with PD 3.0, the charging power is limited to 100 W).

Ports & interfaces

Connectivity technology

Wired

Host interface

Thunderbolt 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

140 W

HDMI ports quantity

2

Thunderbolt 5 ports quantity

2

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

DC-in jack

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Data transfer rate

120 Gbit/s

Maximum digital resolution

7680 x 4320 pixels

Number of displays supported

4

Maximum refresh rate

240 Hz

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

On/off switch

Yes

LED indicators

Yes

Power

Power source type

AC

Power supply

160 W

Output voltage

21 V

Output current

7.61 A

Compatible power plug types

EU

Software

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Other operating systems supported

Android, ChromeOS, iPadOS

Weight & dimensions

Width

154 mm

Depth

96 mm

Height

45 mm

Weight

692 g

Packaging content

Cables included

Thunderbolt

AC adapter included

Yes

Manual

Yes
