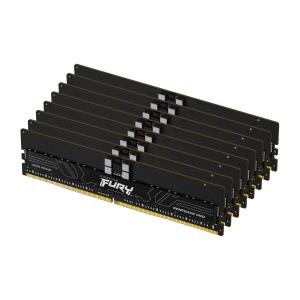

128GB Ddr5 4800mt/s ECCreg Cl36 DIMM (kit Of 8) Renegade Pro Pnp

Introduction

Kingston FURY KF548R36RBK8-128 is a kit of eight 2G x 80-bit (16GB) DDR5-4800 CL36 SDRAM (Synchronous DRAM) 1Rx8, ECC memory module, based on ten 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 128GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 36-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers.

Features

Buffered memory type

Registered (buffered)

On-Die ECC

Y

CAS latency

36

Internal memory

128 GB

Memory layout (modules x size)

8 x 16 GB

Internal memory type

DDR5

Memory clock speed

4800 MHz

Component for

PC

Memory form factor

288-pin DIMM

ECC

Y

Memory channels

Octa-channel

Memory ranking

8

Memory voltage

1.1 V

Row cycle time

48 ns

Refresh row cycle time

295 ns

Row active time

29.12 ns

Row Precharge Time (TRP)

15.8

Intel Extreme Memory Profile (XMP)

Y

Intel Extreme Memory Profile (XMP) version

3.0

Programming power voltage (VPP)

1.8 V

Product colour

Black

Cooling type

Heatsink

JEDEC standard

Y

Operational conditions

Operating temperature (T-T)

0 - 95 °C

Storage temperature (T-T)

-55 - 100 °C

Sustainability

Sustainability certificates

RoHS

Doesn't contain

Halogen

Weight & dimensions

Height

31.2 mm
