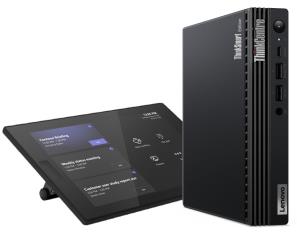

ThinkSmart Tiny Kit - i3 13100T - 16GB Ram - 256GB SSD - Winn11 IoT Ent - VESA Mount + Wall / Table Mount Bracket

Introduction

Transform your meeting room into a productive, hassle-free Microsoft Teams Rooms experience with the Lenovo ThinkSmart Tiny Kit. Powered by 13th Gen Intel® Core™ i3 Processor and Windows 11, this dedicated Teams Rooms solution offers an inclusive collaboration space with Realtek® ALC256VB HD audio, video, and native Microsoft applications—all while keeping your laptop free for other tasks. Additionally, this compact device comes with 16GB DDR4-3200 RAM enabling users to handle multiple applications and processes simultaneously without lag. This is beneficial during video conferences, where participants might share presentations, documents, or collaborate on cloud applications in real time.

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i3

Processor generation

Intel Core i3-13xxx

Processor model

i3-13100T

Processor cores

4

Processor threads

8

Processor boost frequency

4.2 GHz

Performance cores

4

Performance-core Max Turbo Frequency

4.2 GHz

Performance-core base frequency

2.5 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor base power

35 W

Maximum turbo power

69 W

Memory

Internal memory

16 GB

Maximum internal memory

16 GB

Internal memory type

DDR4-SDRAM

Memory layout (slots x size)

2 x 8 GB

Memory slots

2x SO-DIMM

Memory clock speed

3200 MHz

Memory channels

Dual-channel

Storage

Total storage capacity

256 GB

Storage media

SSD

Optical drive type

No

Number of storage drives installed

1

Total SSDs capacity

256 GB

Number of SSDs installed

1

SSD capacity

256 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

Graphics

Discrete graphics card

No

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 730

Network

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Antenna type

2x2

Bluetooth

Yes

Bluetooth version

5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Yes

Design

Chassis type

Mini PC

VESA mounting

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Performance

Motherboard chipset

Intel Q670

Audio chip

Realtek ALC256-VB

Password protection

Yes

Password protection type

BIOS, HDD, Power on, Supervisor

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Product type

Mini PC

Software

Operating system installed

Windows 11 IoT Enterprise

Operating system language

German, Dutch, English, French, Italian

Power

Power supply

90 W

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width

179 mm

Depth

182.9 mm

Height

36.5 mm

Weight

2.65 kg

Package width

313 mm

Package depth

242 mm

Package height

327 mm

Package weight

4.9 kg

Packaging content

Display included

Yes

Display diagonal

25.6 cm (10.1")

Display resolution

1280 x 800 pixels

Native aspect ratio

16:10

Display brightness

340 cd/m²
