Product Details
Introduction

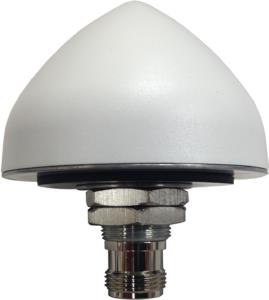

The standard antenna used with the SyncServer S600/S650 is a high-gain (40 dB) GNSS antenna covering the GPS L1, GLONASS L1, and SBAS (WAAS, EGNOS, and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included.
Performance
Frequency band
1575 - 1606 GHz
Bandwidth note
31 MHz
Antenna gain level (max)
4.5 dBi
Features
Voltage Standing Wave Ratio (VSWR)
1.5:1
International Protection (IP) code
IP67
Cable length
22.9 m
Product colour
White
Certification
CE, REACH
Technical details
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
-40 - 85 °C
Weight & dimensions
Height
21 mm
Diameter
6.65 cm
Packaging content
Quantity per pack
1 pc(s)
