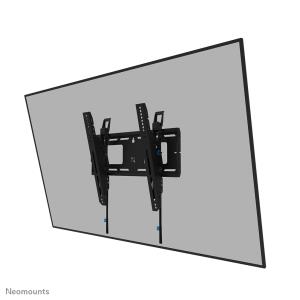

Neomounts Wl35-750bl14 Tiltable Wall Mount For 43-75" Screens - Black

Introduction

The Neomounts WL35-750BL14 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 75" with a maximum capacity of 100 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL14 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Mounting

Minimum screen size

81.3 cm (32")

Maximum weight capacity

100 kg

Maximum screen size

190.5 cm (75")

Minimum VESA mount

100 x 100 mm

Maximum VESA mount

400 x 400 mm

Panel mounting interface

100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400

Number of displays supported

1

Mounting type

Wall

Ergonomics

Height adjustment

Yes

Height adjustment range

0 - 10 mm

Tilt adjustment

Yes

Tilt angle range

-15 - 15°

Cable management

Yes

Distance to the wall (max)

9.3 cm

Design

Product colour

Black

Housing material

Steel

Technical details

Country of origin

China

Lockable

Padlock not included

Weight & dimensions

Width

486 mm

Depth

93 mm

Height

430 mm

Packaging data

Package width

528 mm

Package depth

102 mm

Package height

209 mm

Logistics data

Master (outer) case width

546 mm

Master (outer) case length

227 mm

Master (outer) case height

324 mm

Master (outer) case gross weight

17.4 kg

Master (outer) case net weight

13.2 kg

Products per master (outer) case

3 pc(s)

Harmonized System (HS) code

7326909890

Products per pallet (EU)

78 pc(s)
