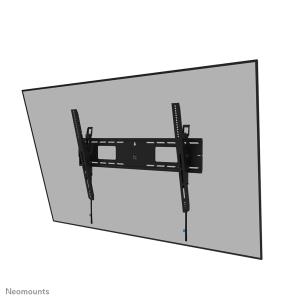

Neomounts Wl35-750bl18 Tiltable Wall Mount For 43-98" Screens - Black

Introduction

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Mounting

Minimum screen size

109.2 cm (43")

Maximum weight capacity

125 kg

Maximum screen size

2.49 m (98")

Minimum VESA mount

100 x 100 mm

Maximum VESA mount

800 x 600 mm

Panel mounting interface

100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600

Number of displays supported

1

Mounting type

Wall

Ergonomics

Height adjustment

Yes

Height adjustment range

0 - 10 mm

Tilt adjustment

Yes

Tilt angle range

-15 - 15°

Cable management

Yes

Distance to the wall (max)

9.3 cm

Design

Product colour

Black

Housing material

Steel

Technical details

Country of origin

China

Lockable

Padlock not included

Weight & dimensions

Width

886 mm

Depth

93 mm

Height

684 mm

Packaging data

Package width

928 mm

Package depth

102 mm

Package height

209 mm

Logistics data

Master (outer) case width

946 mm

Master (outer) case length

227 mm

Master (outer) case height

324 mm

Master (outer) case gross weight

26.3 kg

Master (outer) case net weight

20.4 kg

Products per master (outer) case

3 pc(s)

Harmonized System (HS) code

7326909890

Products per pallet (EU)

39 pc(s)
