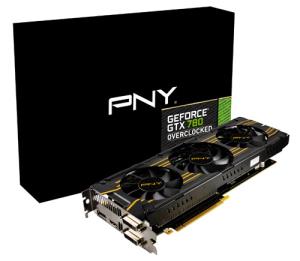

GeForce Gtx 780 Xlr8 Oc Pci-e 3GB Dual DVI Hdmi DisplayPort

Introduction

The newest factory overclocked graphics from PNY, the GeForce GTX 780 XLR8 OC marks an evolution in gaming performance—an insanely fast, smooth, and whisper-quiet experience. It’s perfectly tuned to today’s most advanced gaming technologies with GeForce Experience™ for one-click driver and setting optimization, plus NVIDIA® PhysX® and TXAA™ for smooth, sharp graphics. With PNY's GeForce GTX 780 XLR8 OC, experience pure performance.

- Kepler GPU Architecture
NVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest DirectX 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world-class performance and the highest image quality in an elegant and power efficient graphics card

- NVIDIA GPU Boost 2.0
This brand new technology allows gamers to push PC performance to the maximum with precise controls. GPU Boost 2.0 intelligently monitors work with even more advanced controls like GPU temperature target, overclocking, and overvoltage to ensure the GPU works at the ultimate performance.

- GeForce Experience™
The easiest way to optimize your games and keep your drivers up to date, The GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop.

- Two New Anti-aliasing Modes: FXAA and TXAA
Anti-aliasing smoothes out “jaggies” (jagged edges) but can be demanding on framerates. Fast Approximate Anti-Aliasing (FXAA) is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.

The second mode, Temporal Anti-Aliasing (TXAA), is an in-game option that combines Multisample Anti-Aliasing (MSAA), temporal filtering, and post processing for even higher visual fidelity.

- NVIDIA SLI Technology
Used by the most demanding gamers worldwide, SLI technology lets you link up to three GeForce GTX 780s together for astounding performance. And with NVIDIA’s track record for fast and frequent software updates, you’ll not only get the best performance in existing games, but future games too.

- NVIDIA Adaptive Vertical Sync
Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.

- NVIDIA PhysX Technology
Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.

- NVIDIA 3D Vision Ready
NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor and keyboard brightness with NVIDIA 3D LightBoost technology. In addition, you can enjoy 3D movies and 3D digital photographs from 3DVisionLive.com in eye popping, crystal-clear quality.

- NVIDIA Surround with Up To Four Monitors
Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision and provides for the most immersive experience in racing and flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming.

Processor

CUDA

Y

CUDA cores

2304

Graphics processor family

NVIDIA

Graphics processor

GeForce GTX 780

Processor frequency

1006 MHz

Processor boost clock speed

1059 MHz

Parallel processing technology support

3-Way SLI

FireStream

N

Memory

Discrete graphics card memory

3 GB

Graphics card memory type

GDDR5

Memory bus

384 bit

Memory clock speed

6008 MHz

Data transfer rate

6.2 Gbit/s

Memory bandwidth (max)

298 GB/s

Ports & interfaces

Interface type

PCI Express 3.0

HDMI ports quantity

1

DVI-D ports quantity

1

DVI-I ports quantity

1

DisplayPorts quantity

1

DisplayPort version

1.2

DVI ports quantity

2

Performance

PhysX

Y

TV tuner integrated

N

DirectX version

11.1

OpenGL version

4.3

Dual Link DVI

Y

NVIDIA 3D Vision

Y

NVIDIA GameWorks VR

N

NVIDIA G-SYNC

Y

Texture Fill Rate (TFR)

160 GTexel/s

Design

Cooling type

Active

Power

Minimum system power supply

600 W

Supplementary power connectors

1x 6-pin, 1x 8-pin

System requirements

Windows operating systems supported

Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Minimum RAM

2048 MB

Minimum storage drive space

300 MB
