Hdmi Extender Over Cat5e/6 -4k 60hz 200ft/60m Hdmi 2.0

Introduction

Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over Cable

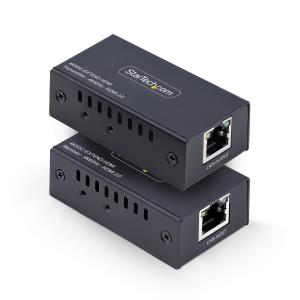

The HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.

4K 60Hz Resolution

This HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.

Power-Over-Cable

The extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.

Versatile Installation Options

A point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.

The StarTech.com Advantage

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5e, Cat6

Maximum transfer distance

60 m

Maximum refresh rate

60 Hz

Audio output channels

7.1 channels

Supported graphics resolutions

800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048

HDCP

Yes

Material

Metal

Rack mounting

No

HDCP version

2.2

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

1

HDMI version

2.0

USB ports quantity

1

USB connector type

USB Type-C

Power

Power source type

USB

AC input voltage

100 - 240 V

Input current

0.3 A

Operating voltage (transmitter)

5 V

Output current

2 A

Operating voltage (receiver)

5 V

Power consumption (typical)

10 W

USB Power Delivery (USB PD)

Yes

External power adapter

Yes

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Receiver dimensions (WxDxH)

40 x 67 x 23 mm

Receiver weight

92 g

Transmitter dimensions (WxDxH)

40 x 67 x 23 mm

Transmitter weight

92 g

Packaging data

Package width

150 mm

Package depth

117 mm

Package height

77 mm

Package weight

364 g

Packaging content

AC adapter included

Yes

Included power plug types

ANZ, EU, NA, UK

Quick start guide

Yes

Mounting brackets included

Yes

Technical details

Compliance certificates

Federal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case width

430 mm

Master (outer) case length

330 mm

Master (outer) case height

380 mm

Products per master (outer) case

30 pc(s)
